COMPASS DEMAGNETIZING

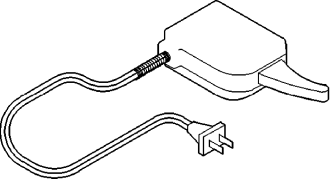

A degaussing tool (Special Tool 6029) is used to demagnetize, or degauss, the roof panel above the overhead console. Equivalent units must be rated as continuous duty for 110/115 volts and 60 Hz. They must also have a field strength of over 350 gauss at 7 millimeters (0.25 inch) beyond the tip of the probe.

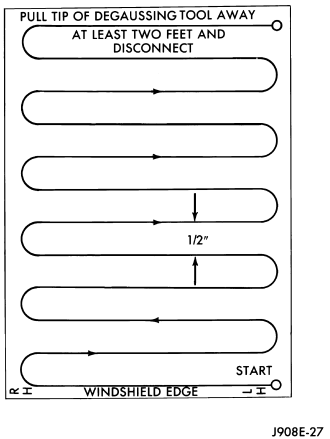

To demagnetize the roof panel proceed as follows:

(Refer to 8 - ELECTRICAL/MESSAGE CENTER/ELECT VEHICLE INFORMATION CENTER - STANDARD PROCEDURE - COMPASS CALIBRATION) (Refer to 8 - ELECTRICAL/MESSAGE CENTER/ELECT VEHICLE INFORMATION CENTER - STANDARD PROCEDURE - COMPASS VARIATION ADJUSTMENT)
