U0208-LOST COMMUNICATION WITH HEATED SEATS CONTROL MODULE

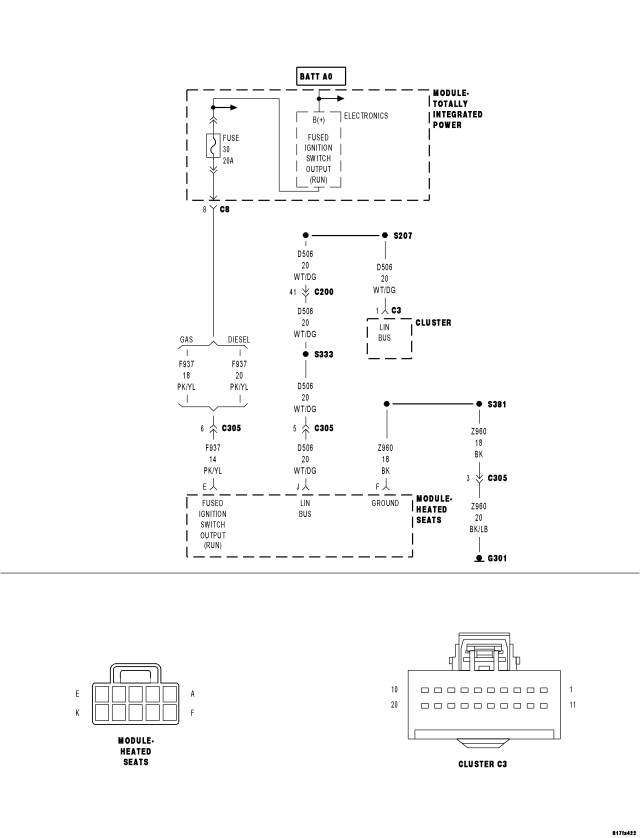

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    With the ignition on.

  • Set Condition:

    The Cluster does not receive information from the Heated Seats Control Module.


Possible Causes

(D506) LIN BUS CIRCUIT OPEN

(F937) FUSED IGNITION SWITCH OUTPUT (RUN) OPEN

(Z960) GROUND CIRCUIT OPEN

HEATED SEATS MODULE




Diagnostic Test

1.CHECK FOR AN ACTIVE DTC






Does the scan tool display: U0208-LOST COMMUNICATION WITH HEATED SEATS CONTROL MODULE?

Yes
  • Go To 2


No
  • The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
  • Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

2.








Is the voltage above 5 volts?

Yes
  • Go To 3


No

3.





Is the voltage above 10 volts?

Yes
  • Go To 4


No

4.(Z960) GROUND CIRCUIT OPEN





Is the resistance below 10K ohms?

Yes


No
