B10BC – RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK – CLUSTER

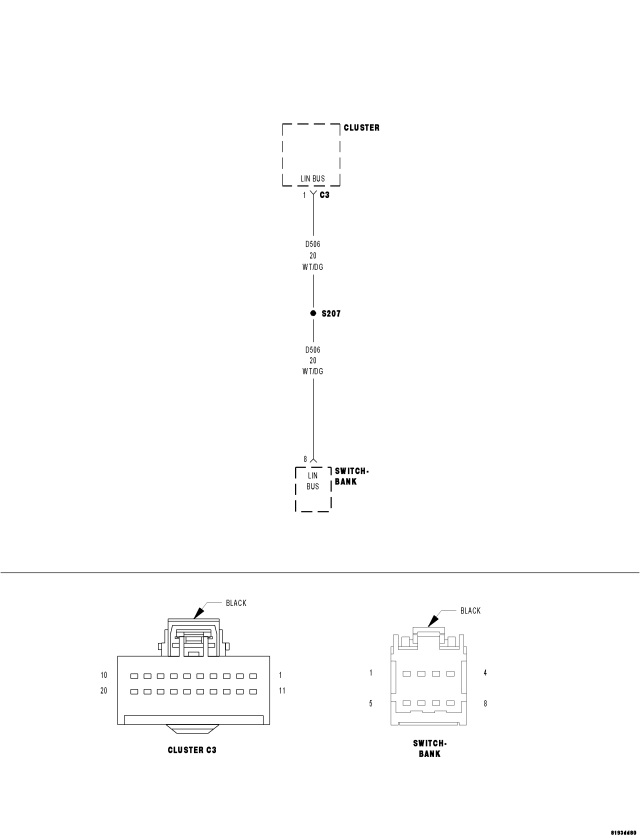

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
When the Heated Seat Switch in the Switch Bank is held in the On position for over 10 seconds, this code will set.
| Possible Causes |
| (D506) LIN BUS CIRCUIT PARTIAL SHORT TO GROUND |
| SWITCH BANK STUCK |
| INSTRUMENT CLUSTER |
Diagnostic Test
1.TEST FOR INTERMITTENT CONDITIONDoes the scan tool display B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

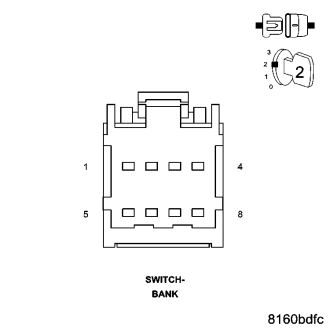

2. SWITCH SHORTED
Does the scan tool display B10BC – RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK?
No
- Replace the Switch Bank.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 3

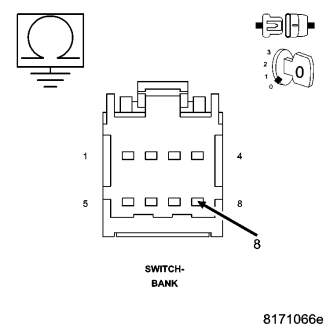

3.(D506) LIN BUS CIRCUIT PARTIAL SHORT TO GROUND
Is the resistance below 10000.0 ohms?
Yes
- Repair the (D506) LIN Bus circuit for a partial short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Instrument Cluster in accordance with the Service Information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
