*NO RESPONSE FROM OCM (OCCUPANT CLASSIFICATION MODULE)

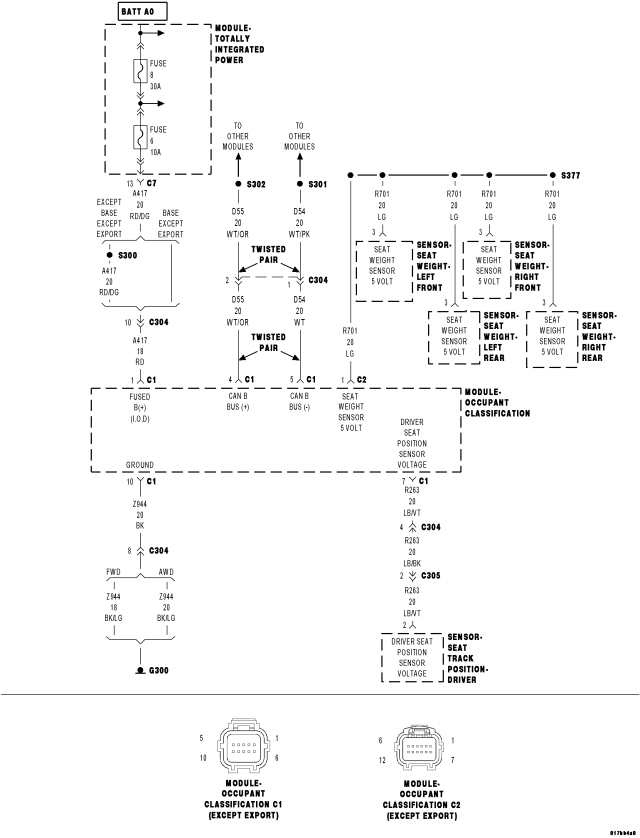

For a complete wiring diagram Refer to Section 8W.



Possible Causes

(A417) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z944) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

(R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO GROUND

(R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT FOR A SHORT TO GROUND

OCCUPANT CLASSIFICATION MODULE




Diagnostic Test

1.TEST FOR INTERMITTENT CONDITION

NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.



NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.



NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.



Does the scan tool display a red X next to the module?

Yes
  • Go To 2


No
  • The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

2.(A417) FUSED B(+) CIRCUIT OPEN OR SHORTED



WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.



WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.




Does the test light illuminate brightly?

Yes
  • Go To 3


No
  • Repair the (A417) Fused B(+) circuit for an open or short.
  • Perform the OCS VERIFICATION TEST-VER 1.

3.(Z944) GROUND CIRCUIT OPEN






Does the test light illuminate brightly?

Yes
  • Go To 4


No
  • Repair the (Z944) ground circuit for an open.
  • Perform the OCS VERIFICATION TEST-VER 1.

4.(D55) AND (D54) CAN B BUS CIRCUITS OPEN


WARNING: If the Occupant Classification Module is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and personal injury or death.


NOTE: One open circuit will not cause this condition.






Is there any voltage present on either circuit?

Yes
  • Go To 5


No
  • Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
  • Perform the OCS VERIFICATION TEST-VER 1.

5.CHECK (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO GROUND




Is the resistance below 10k ohms?

Yes

  • NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.

  • Replace the OCM and Driver Seat Position Sensor Harness in accordance with the service information.
  • Perform the OCS VERIFICATION TEST-VER 1.


No
  • Go To 6

6.CHECK (R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT FOR A SHORT TO GROUND




Is the resistance below 10k ohms?

Yes

  • NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition is present.

  • Replace the OCM and Driver Seat Position Sensor Harness in accordance with the service information.
  • Perform the OCS VERIFICATION TEST-VER 1.


No
  • Replace the Occupant Classification Module in accordance with the service information.
  • Perform the OCS VERIFICATION TEST-VER 1.
