PISTON and BORE MEASUREMENT

NOTE: Pistons and cylinder bores should be measured at normal room temperature, 21°C (70°F).

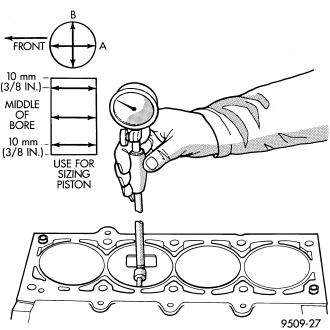

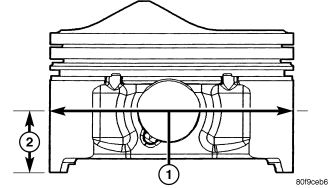

Piston and cylinder wall must be clean and dry. Piston diameter should be measured 90 degrees to piston pin (1).

NOTE: Correct piston to bore clearance must be established in order to assure quiet and economical operation.
