P0354-IGNITION COIL 4 CIRCUIT

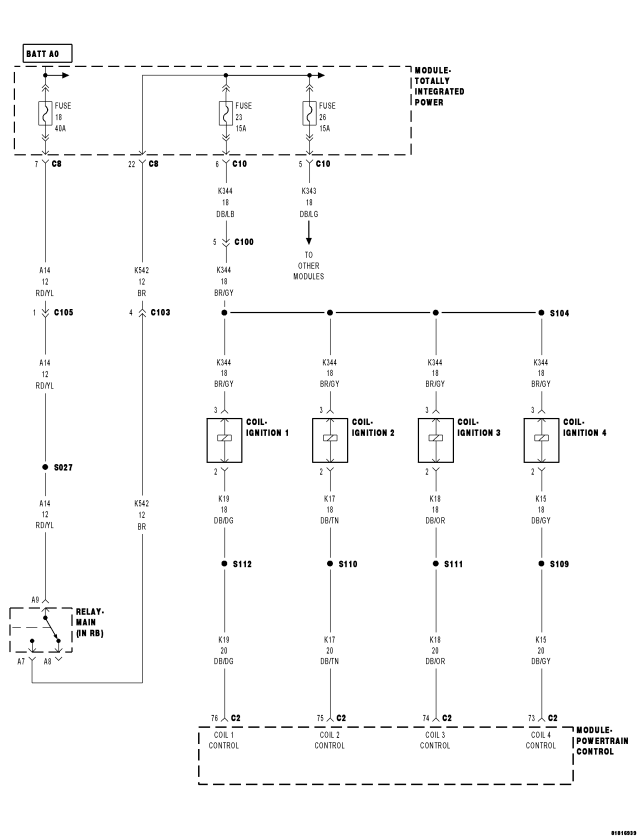

For a complete wiring diagram Refer to Section 8W
- When Monitored:
With the engine running and battery voltage greater than 10.4 volts.
- Set Condition:
The PCM detects that the actual state of Ignition Coil 4 does not match the intended state.
| Possible Causes |
| INTERMITTENT DTC |
| (K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE |
| (K15) COIL 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE |
| IGNITION COIL 4 |
| POWERTRAIN CONTROL MODULE (PCM) |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Diagnostic Test
1.DTC IS ACTIVEWARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
Is the status Active for this DTC?
Yes
- Go to 2
No
- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
2.(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes
- Go to 3
No
- Repair the (K344) Fused Main Relay Output circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).

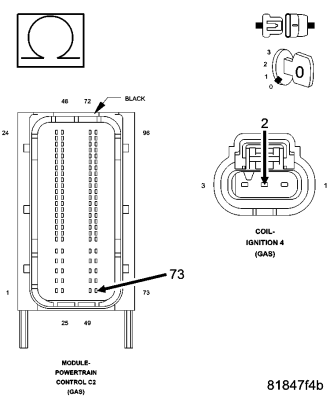

3.(K15) COIL 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Is the resistance below 5.0 ohms?
Yes
- Go to 4
No
- Repair the (K15) Coil 4 Control circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
4.IGNITION COIL 4
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
NOTE: The test light should blink each time the circuit is activated by the PCM.
Does the test light blink each time the circuit is activated by the PCM?
Yes
- Replace the Ignition Coil 4 in accordance with the Service Information.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Go to 5
5.POWERTRAIN CONTROL MODULE (PCM)
Were any problems found?
Yes
- Repair as necessary.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
