POWER BRAKE BOOSTER - RIGHT-HAND-DRIVE
NOTE: Before proceeding, (Refer to 5 - BRAKES - WARNING) (Refer to 5 - BRAKES - CAUTION).
CAUTION: The vacuum in the power brake booster must be pumped down before removing the master cylinder to prevent the booster from sucking in any contamination. This can be done by pumping the brake pedal while the engine is not running until a firm brake pedal is achieved.
(Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL)
(Refer to 24 - HEATING & AIR CONDITIONING - STANDARD PROCEDURE)
(Refer to 14 - FUEL SYSTEM/FUEL INJECTION/O2 SENSOR - REMOVAL)
(Refer to 7 - COOLING/ENGINE/COOLANT RECOVERY CONTAINER - REMOVAL)
(Refer to 19 - STEERING/PUMP/RESERVOIR - REMOVAL)
(Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WASHER RESERVOIR - REMOVAL)
Do not remove the check valve from the power brake booster.
(Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/MASTER CYLINDER - REMOVAL)
(Refer to 23 - BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - REMOVAL)

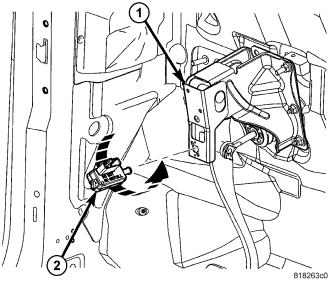

Do not reuse the stop lamp switch. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/STOP LAMP SWITCH - REMOVAL)
Do not reuse the clip.
(Refer to 6 - CLUTCH/MASTER CYLINDER - REMOVAL)
