REMOVAL

NOTE: Before proceeding, (Refer to 5 - BRAKES - WARNING) (Refer to 5 - BRAKES - CAUTION).

NOTE: If the rear brake pads are being replaced due to a howl or moan while driving in reverse, proper diagnosis and correction is essential. (Refer to 5 - BRAKES - DIAGNOSIS AND TESTING)

NOTE: Perform STEP 2 through STEP 6 on each side of the vehicle to complete pad set removal.

NOTE: In some cases, it may be necessary to retract the caliper piston in its bore a small amount in order to provide sufficient clearance between the pads and the rotor to easily remove the caliper from the knuckle. This can usually be accomplished before the guide pin bolts are removed, by grasping the rear of the caliper and pulling outward working with the guide pins, thus retracting the piston. Never push on the piston directly as it may get damaged.

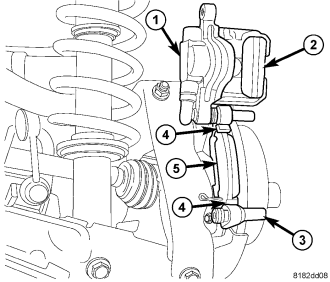

CAUTION: When moving rear brake caliper upward, use extreme care not to damage or overextend the flex hose. Damage may occur.
