POWER STEERING SYSTEM BLEEDING

WARNING: The fluid level should be checked with engine off to prevent injury from moving components.

CAUTION: Mopar® Power Steering Fluid + 4 or Mopar® ATF+4 Automatic Transmission Fluid is to be used in the power steering system. Both Fluids have the same material standard specifications (MS-9602). No other power steering or automatic transmission fluid is to be used in the system. Damage may result to the power steering pump and system if another fluid is used. Do not overfill the system.

CAUTION: If the air is not purged from the power steering system correctly, pump failure could result.

NOTE: Be sure the vacuum tool used in the following procedure is clean and free of any fluids.

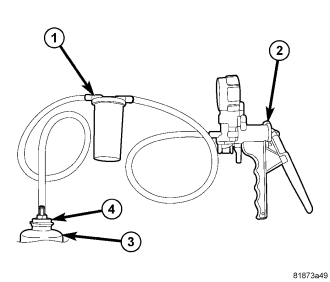

CAUTION: Failure to use a the vacuum pump reservoir (1) may allow power steering fluid to be sucked into the hand vacuum pump.

CAUTION: Do not run the engine while vacuum is applied to the power steering system. Damage to the power steering pump can occur.

NOTE: When performing the following step make sure the vacuum level is maintained during the entire time period.

NOTE: Do not hold the steering wheel at the stops.
