U0114-LOST COMMUNICATION WITH FINAL DRIVE CONTROL MODULE (ALL WHEEL DRIVE CONTROL MODULE) (AWD)





For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    With the ignition on.

    Battery voltage between 10 and 16 volts.

    IOD fuse installed.

    TIPM is configured correctly.

  • Set Condition:

    Bus messages not received from the All Wheel Drive Control (AWD) Module for approximately 500ms.


Possible Causes

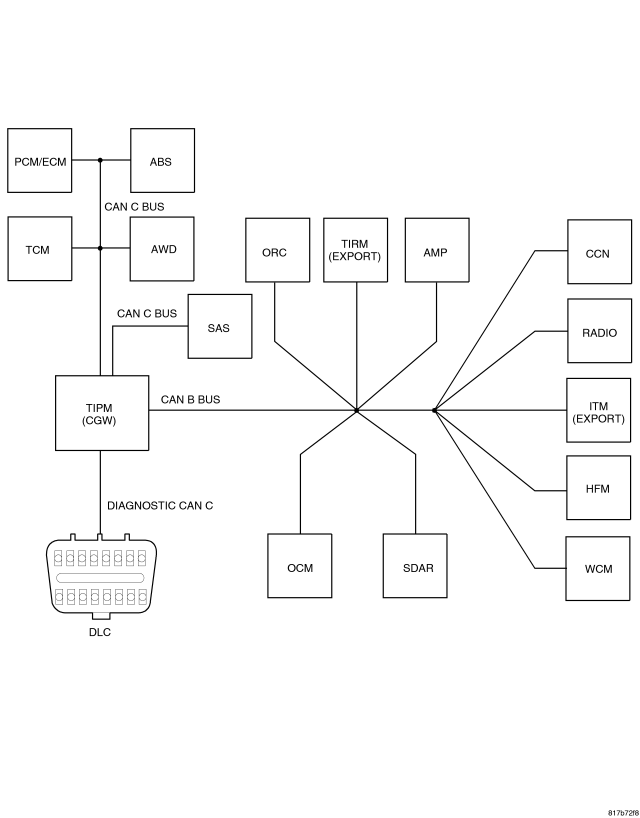

CAN B OR CAN C BUS CIRCUITS OPEN OR SHORTED

DTC'S RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES

TIPM NOT CONFIGURED CORRECTLY

ALL WHEEL DRIVE CONTROL (AWD) MODULE POWER AND GROUND

ALL WHEEL DRIVE CONTROL (AWD) MODULE

MODULE THAT SET THIS DTC




Diagnostic Test

1.VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.

NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.




Is this DTC active?

Yes
  • Go To 2


No

2.CHECK FOR ANY OF THE FOLLOWING ACTIVE DTC'S


NOTE: Check for TIPM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or ignition related DTC's.



Does the scan tool display any active DTC's to the conditions listed above?

Yes


No
  • Go To 3

3.VERIFY THAT THE AWD IS ACTIVE ON THE BUS





Is the AWD active on the bus?

Yes
  • Go To 4


No

4.CHECK FOR ADDITIONAL COMMUNICATION RELATED DTC'S



Is there more than one module with active DTC's “Logged Against” the AWD?

Yes


No
