U0022-CAN B BUS (+) CIRCUIT LOW





For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    Continuously.

  • Set Condition:

    The TIPM detects the (D55) CAN B Bus (+) circuit is shorted to ground.


Possible Causes

(D55) CAN B BUS (+) CIRCUIT SHORTED TO GROUND

ANY CAN B BUS MODULE

TOTALLY INTEGRATED POWER MODULE




Diagnostic Test

1.TEST FOR INTERMITTENT CONDITION

NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.








Does the scan tool display this DTC as active?

Yes
  • Go To 2


No
  • The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

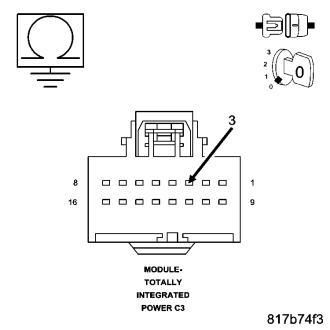

2.CHECK THE (D55) CAN B BUS (+) CIRCUIT FOR A SHORT TO GROUND







Is resistance below 1000.0 ohms?

Yes
  • Go To 3


No

3.(D55) CAN B BUS (+) CIRCUIT SHORTED TO GROUND





NOTE: This is to determine if the circuit is shorted to ground internally within a module or if the circuit is shorted in the harness.


NOTE: Disconnecting an in-line connector can eliminate a module or group of modules from the list of possible causes for this fault. Refer to the wring diagrams to assist in diagnosis.



Is resistance below 1000.0 ohms with all the CAN B Bus modules disconnected?

Yes


No
