ASSEMBLY

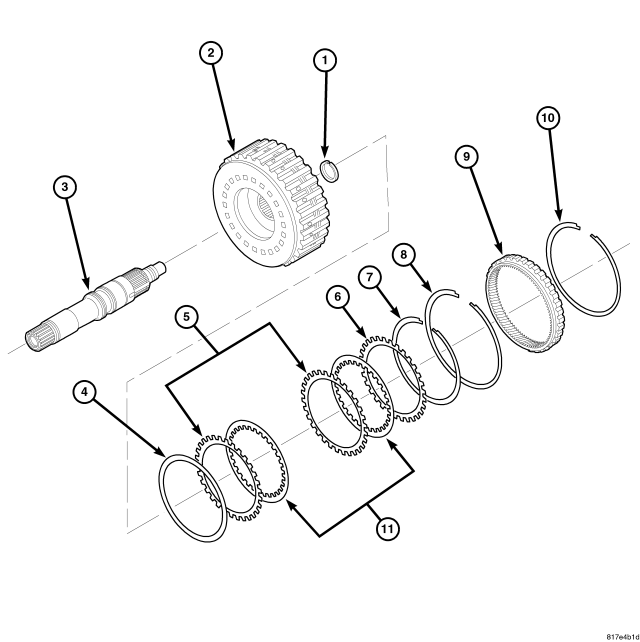

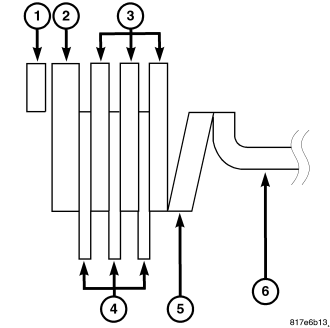

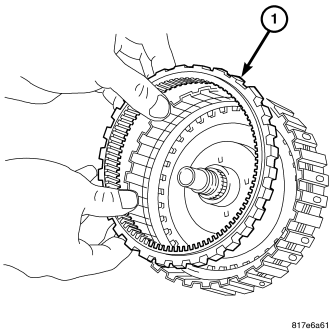

CAUTION: Install so that the installation order of each plate is correct.

CAUTION: When conducting measurements, measure two or more places and calculate the average value. If clearance is beyond standard value, replace the forward clutch assembly.

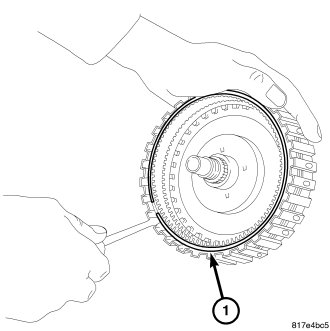

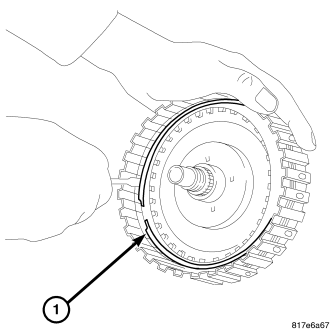

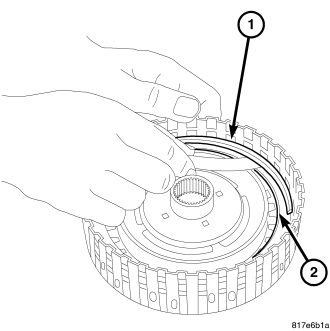

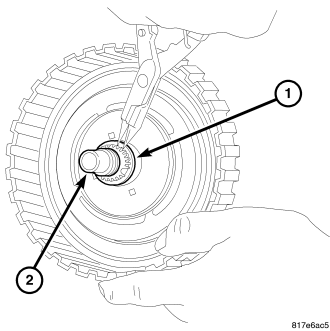

CAUTION: Do not expand the snap ring beyond level required to install and do not deform it.
