HOUSING-AIR INLET

NOTE: The air inlet housing must be removed from HVAC housing and disassembled for service of the recirculation-air door.

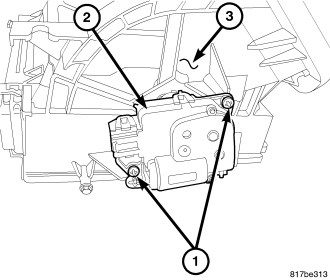

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.

NOTE: If the foam seal on the air inlet housing is deformed or damaged, the seal must be replaced.

NOTE: If a rubber seal on the recirculation air-door is deformed or damaged, the air-door must be replaced.
