HOUSING-AIR DISTRIBUTION

NOTE: The air distribution housing must be removed from the HVAC housing and disassembled for service of the blend-air and mode-air doors.

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.




(refer to 24 - HEATING & AIR CONDITIONING/DISTRIBUTION /HOUSING-HVAC - HOUSING-HVAC ASSEMBLY - REMOVAL)
(refer to 24 - HEATING & AIR CONDITIONING/DISTRIBUTION/HOUSING-HVAC - HOUSING-AIR DISTRIBUTION - REMOVAL)
(refer to 24 - HEATING & AIR CONDITIONING/CABIN HEATER/HEATER UNIT - REMOVAL)
(Refer to 24 - HEATING & AIR CONDITIONING/PLUMBING/CORE HEATER - REMOVAL)


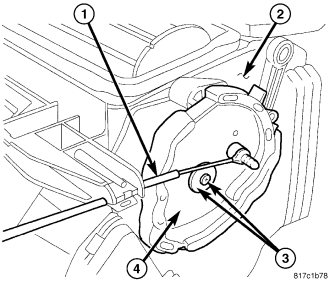

(refer to 24 - HEATING & AIR CONDITIONING/CONTROLS/CABLE-TEMPERATURE CONTROL - REMOVAL)

NOTE: To remove the blend door pivot lever, disengage the retaining tab and pull the lever straight out of the air distribution housing.





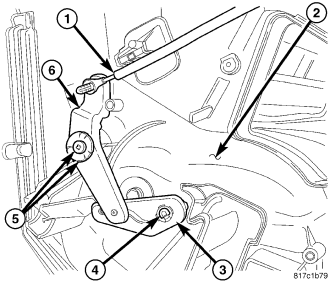

(refer to 24 - HEATING & AIR CONDITIONING/CONTROLS/CABLE-MODE DOOR - REMOVAL)

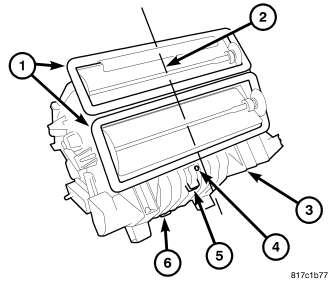

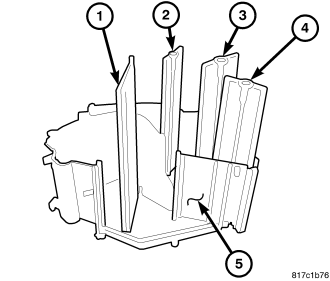

NOTE: If any foam seal on the air distribution housing outlets is deformed or damaged, the seal must be replaced.






NOTE: If a seal on an air door is deformed or damaged, the air door must be replaced.

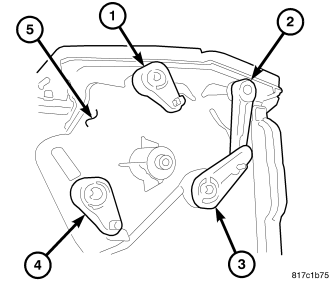

NOTE: To remove the mode door levers, disengage the retaining tabs on the inside of the air distribution housing and pull the levers straight out of the housing.
