HOUSING-HVAC

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in an accidental airbag deployment and possible personal injury or death.

WARNING: Refer to the applicable warnings and cautions for this system before performing the following operation (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - WARNING) and (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - CAUTION). Failure to follow the warnings and cautions could result in possible personal injury or death.

NOTE: The HVAC housing must be removed from the vehicle and disassembled for service of the heater core, A/C evaporator, air intake housing and the mode-air and blend-air doors.

NOTE: LHD model shown in illustrations. RHD model similar.

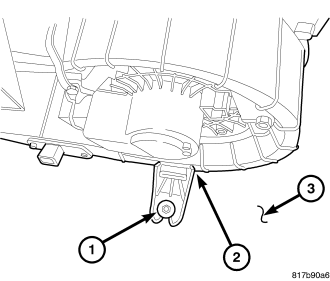

NOTE: Make sure to remove the five bolts that secure the HVAC housing to the instrument panel support prior to removing the instrument panel from the vehicle.

NOTE: Use care to ensure that the interior is covered in case of loss of residual fluids from the heater and evaporator cores.
