P0562-ECM VOLTAGE TOO LOW

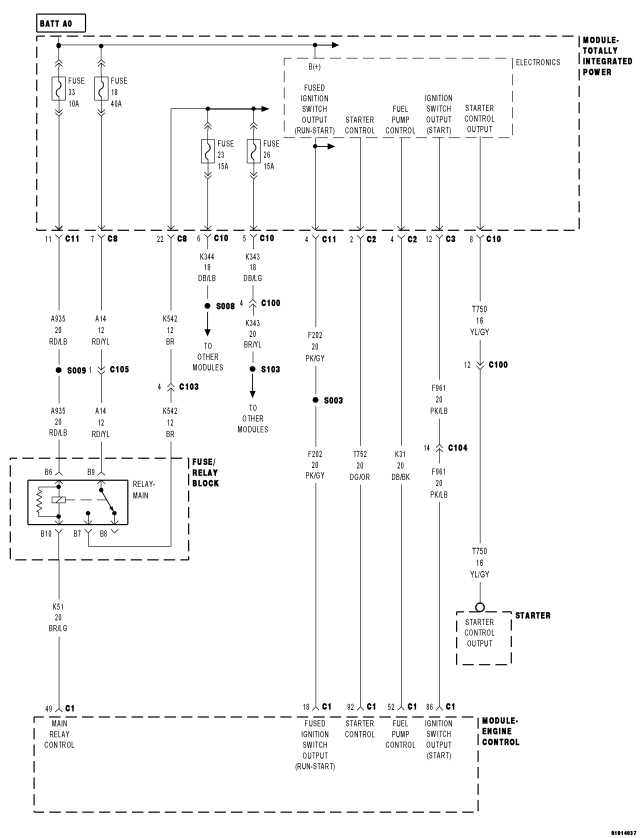

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on or the engine running.
Set Condition:
The ECM detects battery voltage of 9.9 volts or less for 0.48 seconds.

Possible Causes

CHECKING ECM POWER AND GROUNDS

ECM

INTERMITTENT CONDITION

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

Diagnostic Test

1.CHECK FOR ACTIVE DTC

NOTE: This DTC may be caused by a charging system problem. Refer to the Service Information and verify proper charging system operation before continuing.

Did this DTC set again?

Yes

Go To 2

Go To 3

2.CHECK POWER AND GROUNDS

Were any problem found with the ECM powers and grounds?

Yes

Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

3.INTERMITTENT CONDITION

WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.

NOTE: The conditions that set the DTC are not present at this time. The following list may help in identifying the intermittent condition.

Were any of the above conditions present?

Yes

Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

Test Complete.
