B1467-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT HIGH

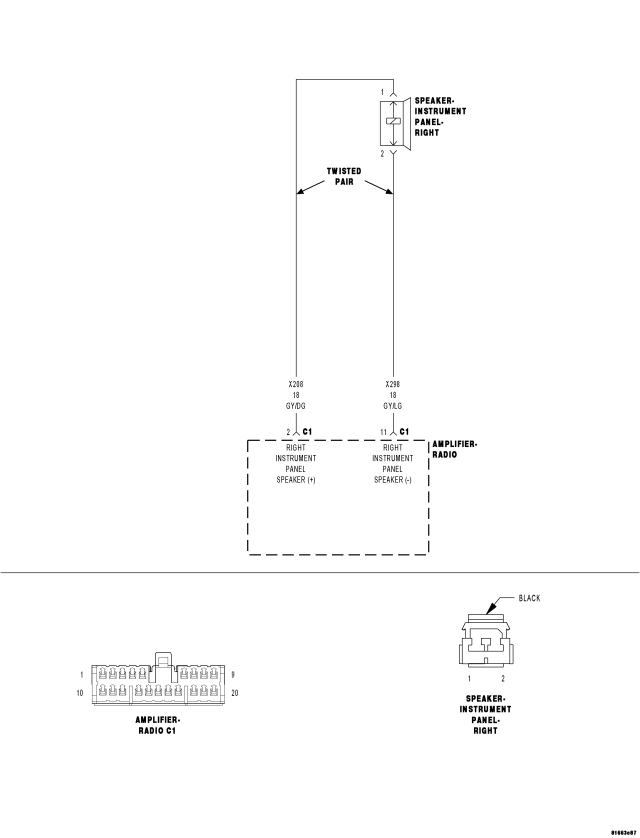

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:
  • With the ignition on.
  • Set Condition:
  • The amplifier detects a short to battery condition on the output circuit.

Possible Causes

(X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT SHORT TO VOLTAGE

(X298) AMPLIFIED RIGHT I/P SPEAKER (-) CIRCUIT SHORT TO VOLTAGE

AMPLIFIER




Diagnostic Test

1.CHECK FOR AN INTERMITTENT CONDITION




Does the scan tool display active: B1467-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT HIGH?

Yes
  • Go To 2


No
  • The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  • Perform BODY VERIFICATION TEST VER-1.

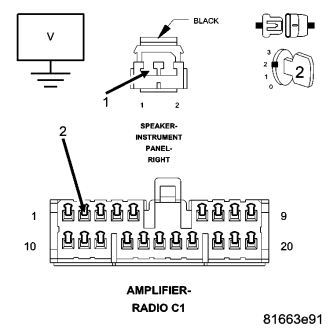

2.CHECK FOR VOLTAGE ON THE (X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT









Is the voltage above 10.0 volts?

Yes
  • Repair the (X208) Amplified Right I/P Speaker (+) circuit for a short to voltage.
  • Perform BODY VERIFICATION TEST VER-1.


No
  • Go To 3

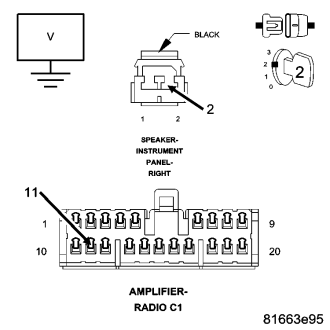

3.CHECK FOR VOLTAGE ON THE (X298) AMPLIFIED RIGHT I/P SPEAKER (-) CIRCUIT





Is the voltage above 10.0 volts?

Yes
  • Repair the (X298) Amplified Right I/P Speaker (-) circuit for a short to voltage.
  • Perform BODY VERIFICATION TEST VER-1.


No
  • Replace the amplifier in accordance with the service information.
  • Perform BODY VERIFICATION TEST VER-1.
