HVAC HOUSING

NOTE: The HVAC housing must be removed from the vehicle and disassembled for service of the A/C evaporator and the mode-air and blend-air doors.

NOTE: LHD model shown in illustrations. RHD model similar.

NOTE: If the foam seal on the air inlet housing is deformed or damaged, the seal must be replaced.

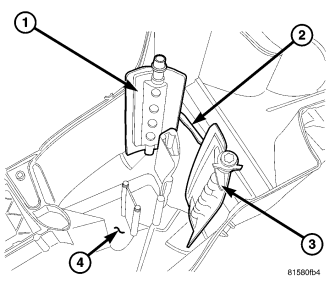

NOTE: If the foam seal around the heater core tubes is deformed or damaged, the seal must be replaced.

NOTE: If the foam insulator around the heater core is deformed or damaged, the insulator must be replaced.

NOTE: If any foam or rubber seal is deformed or damaged, the seal must be replaced.

NOTE: If the foam seal on the floor distribution duct is deformed or damaged, the seal must be replaced.

NOTE: If the foam seal on the panel/defrost outlet is deformed or damaged, the seal must be replaced.

NOTE: If the seal on the air door is deformed or damaged, the air door must be replaced.

NOTE: If the foam insulator around the A/C evaporator is deformed or damaged, the insulator must be replaced.

NOTE: If the rubber seal around the evaporator tubes is deformed or damaged, the seal must be replaced.

NOTE: If the seal on the air door is deformed or damaged, the air door must be replaced.

NOTE: If the seal on any air door is deformed or damaged, the air door must be replaced.
