P0706-TRANSMISSION RANGE SENSOR RATIONALITY

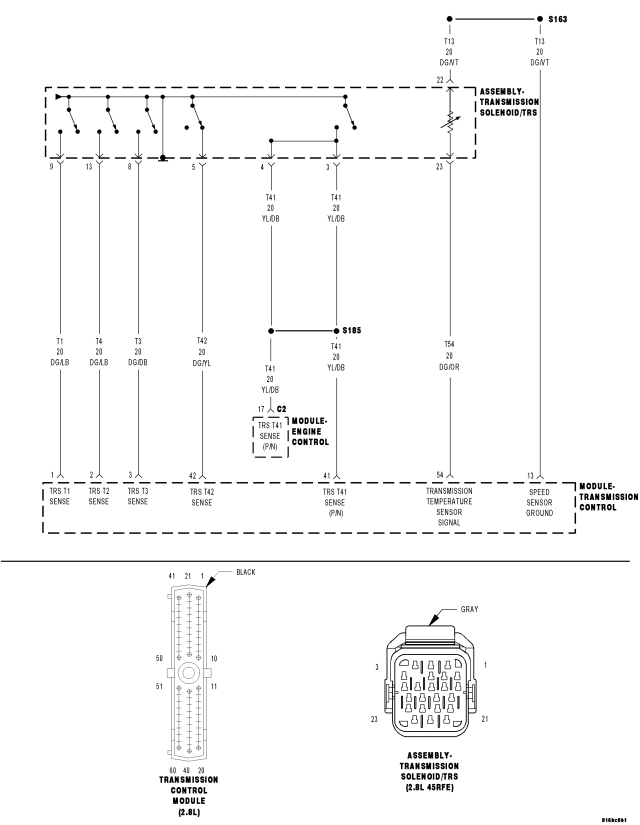

For a complete wiring diagram Refer to Section 8W.

Theory of Operation


The T1, T2, T3, T41, or T42 (C1 - C5) Sense circuits communicate the shift lever position to the Transmission Control System. Each circuit is terminated at the transmission by a switch (TRS). Each switch can be either open or closed, depending on the shift lever position. The TCM can decode this information and determine the shift lever position.

Each shift lever position has it own unique combination of closed and open switches. This is called a PRNDL code. There are 5 switches, therefore: there are many possible combinations of open and closed switches (codes). There are 12 valid codes: two for neutral, one for each other gear position (5), and five temporary (transition zone) codes. The remainder of the codes should never occur, these are called invalid codes.


  • When Monitored:

    Continuously with the ignition on.

  • Set Condition:

    The DTC will set if the controller detects an invalid PRNDL code which lasts for more than 0.042 seconds.


Possible Causes

SHIFTER OUT OF ADJUSTMENT

TRS SENSE CIRCUIT OPEN

TRS SENSE CIRCUIT SHORT TO GROUND

TRS SENSE CIRCUIT SHORT TO VOLTAGE

METAL DEBRIS IN OIL PAN

TRANSMISSION RANGE SENSOR

TRANSMISSION CONTROL MODULE


Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)



Diagnostic Test

1.CHECK IF P0706 DTC IS CURRENT



Select the test outcome from the following:

Test passes:
  • Go To 6


Test fails with Error Code:
  • Go To 2


Test fails without Error Code:

2.CHECK THE TRANSMISSION SOLENOID/TRS ASSEMBLY



CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear.


WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury or death.


NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition.







NOTE: When the scan tool requests the O/D off button be depressed, you must use the O/D OFF button in the vehicle or you will fail the Shift Lever Position Test with an error code 11 or OD-TOW/HALL STUCK OPEN.


NOTE: If the Shift Lever Position test fails, make sure to note the identification of the TRS Sense circuit for future reference.



Did the Shift Lever Position test pass?

Yes
  • Remove the Oil Pan and Main Valve Body Assembly per the Service Information. Check for metal debris on top of the Solenoid/TRS Assembly and the manual valve code plate. If debris is present, determine the cause of the debris and repair the transmission as necessary. If no problems are found, replace the Transmission Solenoid/TRS Assembly per the Service Information.
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)


No
  • Go To 3

3.CHECK THE TRS SENSE CIRCUITS FOR AN OPEN






Is the resistance above 5.0 ohms?

Yes


No
  • Go To 4

4.CHECK THE TRS SENSE CIRCUITS FOR A SHORT TO GROUND



Is the resistance below 5.0 ohms?

Yes


No
  • Go To 5

5.CHECK THE TRS SENSE CIRCUITS FOR A SHORT TO ANOTHER CIRCUIT



Is the resistance below 100k ohms between the identified (T1, T2, T3, T41, or T42) TRS Sense circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?

Yes
  • Repair the identified (T1, T2, T3, T41, or T42) TRS Sense circuit for a short to another circuit(s).
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.


No
  • Using the schematics as a guide, check the Powertrain Control Module (TCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the TCM per the Service Information. With the scan tool, perform QUICK LEARN.
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

6.CHECK WIRING AND CONNECTORS






Were there any problems found?

Yes


No
  • Test Complete.
