REMOVAL

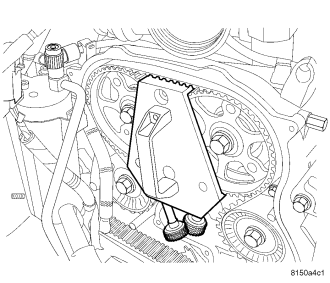

CAUTION: Before removing the timing belt, the engine must be placed at 90° atdc and alignment pin vm.1089 installed. Failure to do so may result in valve and/or piston damage during assembly. (Refer to 9 - ENGINE/VALVE TIMING - STANDARD PROCEDURE)

(Refer to 9 - ENGINE COVER - REMOVAL)
(Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - REMOVAL)
(Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
(Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL)
(Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL)

(Refer to 9 - ENGINE/VALVE TIMING - STANDARD PROCEDURE)

(Refer to 9 - ENGINE/VALVE TIMING - STANDARD PROCEDURE)

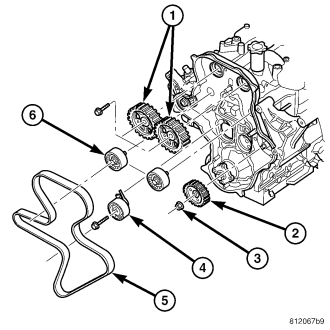

(Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL)
