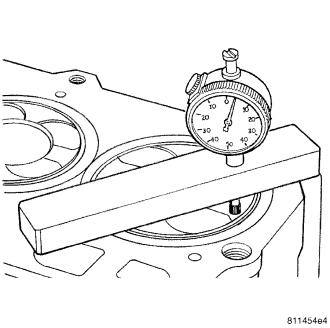

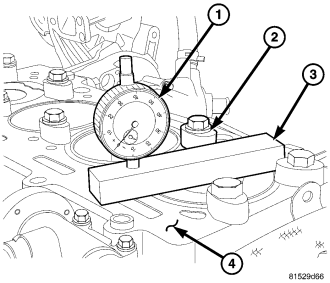

STANDARD PROCEDURE - MEASURING PISTON PROTRUSION

CAUTION: DO NOT Rotate the engine with the cylinder head off without first installing the cylinder liner retainers VM.1076. Failure to do so may result in the cylinder liner moving and a false piston protrusion reading. A false piston protrusion reading may result in a wrong cylinder head gasket selection.









NOTE: Install the cylinder liner retainers VM.1076 before rotating the engine.




Measure Dimension (mm)
  		0.460-0.609

Cylinder Head Gasket Thickness (mm)
  		1.32
No Holes or Notches

Piston Clearance (mm)
  		0.71-0.86


Measure Dimension (mm)
  		0.610-0.709

Cylinder Head Gasket Thickness (mm)
  		1.42
1 Hole or Notch

Piston Clearance (mm)
  		0.711-0.81


Measure Dimension (mm)
  		0.710-0.810

Cylinder Head Gasket Thickness (mm)
  		1.52
2 Holes or Notches

Piston Clearance (mm)
  		0.71-0.81
