U1113-LOST A/C PRESSURE MESSAGE

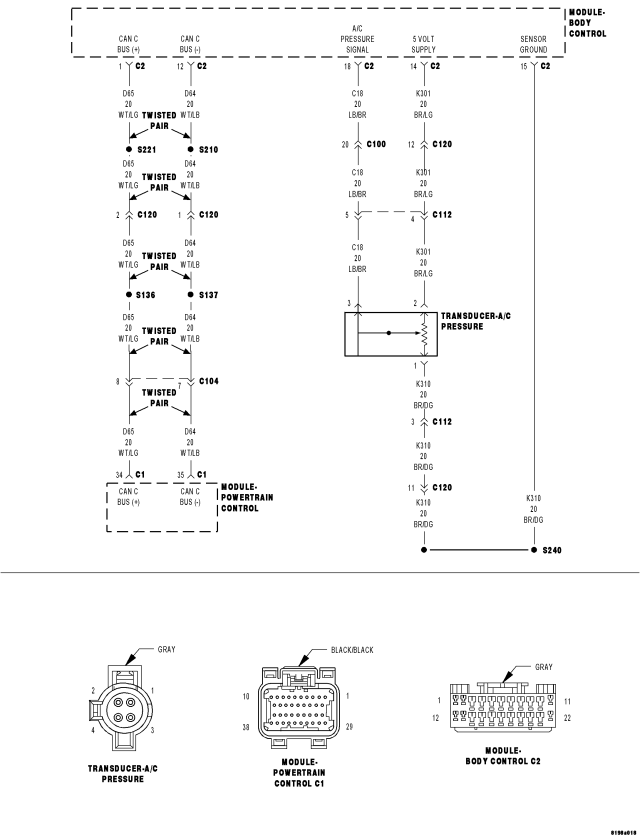

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.
Set Condition:
The PCM doesn't receive the a/c pressure signal over the CAN C bus from the BCM. The circuit is continuously monitored.

Possible Causes

CAN C BUS CIRCUIT OPEN OR SHORTED

BODY CONTROL MODULE

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

The A/C Pressure Transducer signal is a direct input to the BCM. The BCM sends the PCM the A/C Pressure Transducer signal over the CAN C bus.

1.ACTIVE DTC

Is the DTC active at this time?

Yes

Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.U0141-LOST COMMUNICATION WITH BODY CONTROL MODULE ALSO ACTIVE

Is the U0141-NO BUS MESSAGE RECEIVED FROM THEBCM also set?

Yes

Follow the diagnostics for U0140-LOST COMMUNICATION WITH BODY CONTROL MODULE
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
