P0480-COOLING FAN 1 CONTROL CIRCUIT

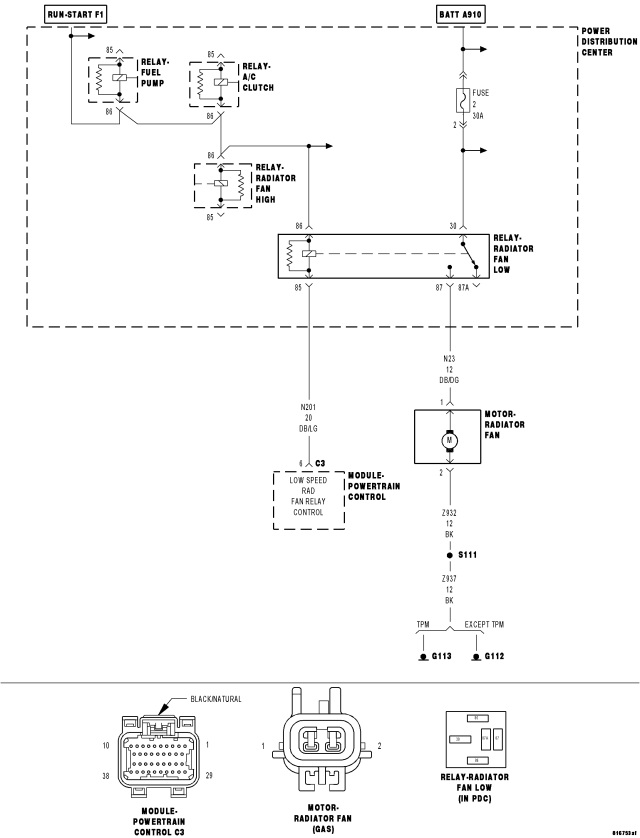

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    With the ignition on. Battery voltage greater than 10 volts.

  • Set Condition:

    An open or shorted circuit is detected in the radiator fan relay control circuit for more than 2.7 seconds. One Trip Fault. Three good trips to turn off the MIL.


Possible Causes

INTERNAL (A16) FUSED B+ CIRCUIT

INTERNAL (F1) FUSED IGNITION SWITCH OUTPUT CIRCUIT

(N201) COOLING FAN NO.1 RELAY CONTROL CIRCUIT OPEN

(N201) COOLING FAN NO.1 RELAY CONTROL CIRCUIT SHORTED TO GROUND

LOW SPEED RADIATOR FAN RELAY

PCM



Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).



Diagnostic Test

1.LOW SPEED RADIATOR FAN RELAY OPERATION




Is the Cooling Fan Relay operating?

Yes


No
  • Go To 2

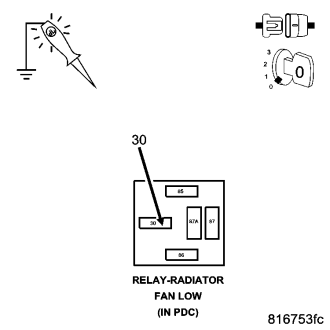

2.(A16) FUSED B+ CIRCUIT







Does the test light illuminate brightly?

Yes
  • Go To 3


No

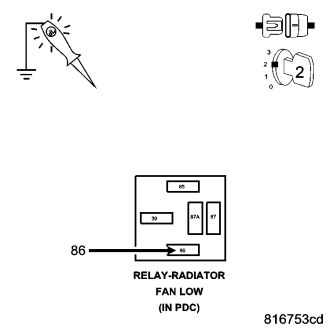

3.(F1) FUSED IGNITION SWITCH OUTPUT CIRCUIT






Does the test light illuminate brightly?

Yes
  • Go To 4


No

4.LOW SPEED RADIATOR FAN RELAY RESISTANCE




Is the resistance between 60 to 80 ohms?

Yes
  • Go To 5


No

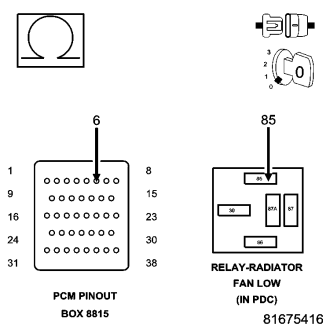

5.(N201) COOLING FAN NO.1 CONTROL CIRCUIT OPEN




CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis




Is the resistance below 5.0 ohms?

Yes
  • Go To 6


No

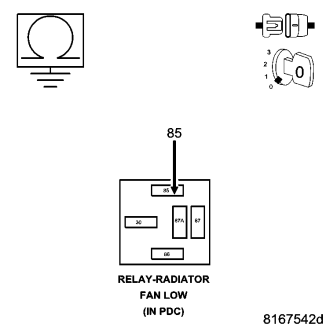

6.(N201) COOLING FAN NO.1 CONTROL CIRCUIT SHORTED TO GROUND





Is the resistance below 100 ohms?

Yes


No
  • Go To 7

7.PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.




Were there any problems found?

Yes


No
