P0463-FUEL LEVEL SENSOR 1 CIRCUIT HIGH

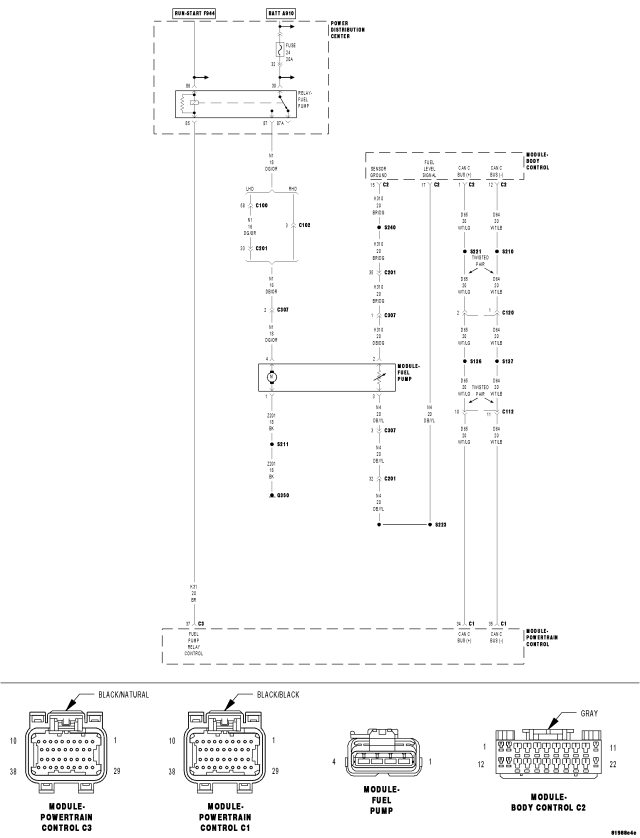

For a complete wiring diagram Refer to Section 8W.

• When Monitored:

  Ignition on and battery voltage above 10.4 volts.

• Set Condition:

  The fuel level sensor signal voltage at the PCM goes above 4.9 volts for more than 90 seconds. One Trip Fault. Three good trips to turn off the MIL.

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Diagnostic Test

NOTE: Diagnose and CAN C Bus communication DTCs before continuing.

• Go To 2

• Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Replace the Fuel Level Sensor.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 3

  NOTE: Remove the jumper wire before continuing.

• Repair the short to battery voltage in the (N4) Fuel Level Signal circuit.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 4

• Go To 5

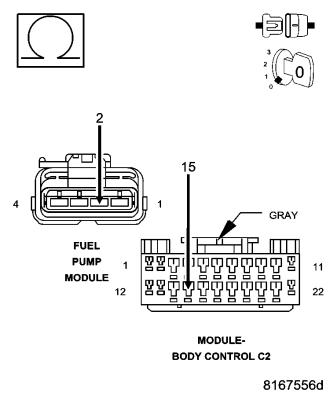

• Repair the open in the (N4) Fuel Level Signal circuit.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 6

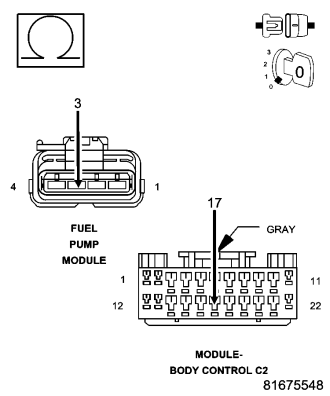

• Repair the open in the (K310) Sensor ground circuit.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

NOTE: Before continuing, check the BCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

• Repair as necessary.
• Perform the BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Replace and program the Body Control Module per Service Information.
• Perform the BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
