P0455-EVAP PURGE SYSTEM LARGE LEAK





For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    Engine Running. Cold start test. Fuel Level greater than 12%. Ambient Temperature between 4°C and 32°C (39°F and 89°F) Close Loop fuel system. Test runs when small leak test is maturing.

  • Set Condition:

    The PCM activates the EVAP Purge Solenoid to pull the EVAP system into a vacuum to close the ESM switch. Once the ESM switch is closed, the PCM turns the EVAP Purge solenoid off to seal the EVAP system. If the ESM switch reopens before the calibrated amount of time, a large leak error is detected. Two Trip Fault. Three good trips to turn off the MIL.


Possible Causes

EVAP PURGE SYSTEM LEAK

EVAP PURGE SOLENOID

EVAP SYSTEM MONITOR SWITCH


Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).



Diagnostic Test

1.VEHICLE HISTORY AND SERVICE BULLETIN INVESTIGATION










Choose the following scenario that best applies.

The service bulletin repaired the customer's complaint.
  • Testing complete.


A DTC is present, no service bulletins apply, or the service bulletin didn't repair the customer's complaint.
  • Go To 2

2.ACTIVE DTC

NOTE: Since a hot vehicle can conceal a leak, it is best to perform this test at room temperature.

NOTE: A loose gas cap could have caused this DTC to set. Make sure gas cap is tight and in good condition. Make sure the gas cap meets OEM specifications.







Is the status Active for this DTC?

Yes
  • Go To 3


No

3.VISUAL AND PHYSICAL INSPECTION









Were any of the above conditions found?

Yes


No
  • Go To 4

4.VERIFY EVAPORATIVE EMISSION LEAK

WARNING: Keep lit cigarettes, sparks, flames, and other ignition sources away from the test area to prevent the ignition of explosive gases. Keep the test area well ventilated.



NOTE: The fuel tank should have between 20% and 80% of fuel tank capacity to properly test the Evap system.













NOTE: Larger volume fuel tanks, lower fuel levels or if the vehicle is equipped with a Flow Management Valve may indicate high flow and will require 4 to 5 minutes to fill.






Is the indicator ball above the red flag?

Yes
  • Go To 5


No
  • Refer to the Freeze Frame data recorded in step 1. If the data indicates that the vehicle was in motion when the DTC was set, verify that all hoses are properly connected.
  • Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

5.EVAPORATIVE EMISSION LEAK DETECTION

NOTE: A thorough visual inspection of the Evap system hoses, tubes, and connections may save time in your diagnosis. Look for any physical damage or signs of wetness at connections. The strong smell of fuel vapors may aid diagnosis also.






NOTE: The flow meter indicator ball will not move in the smoke mode.



NOTE: Make sure that smoke has filled the EVAP system by continuing to press the remote smoke/air start button, remove the vehicle fuel cap, and wait for the smoke to exit. Once smoke is indicated reinstall the fuel cap.


NOTE: For optimal performance, introduce smoke into the system for an additional 60 seconds; continue introducing smoke at 15 second intervals, as necessary.





NOTE: The EVAP System is divided into three zones. A leak from any of these zones can cause this DTC to set. The lists below specify the possible leak points in that specific zone. For further assistance see the Zone Identification Charts below.

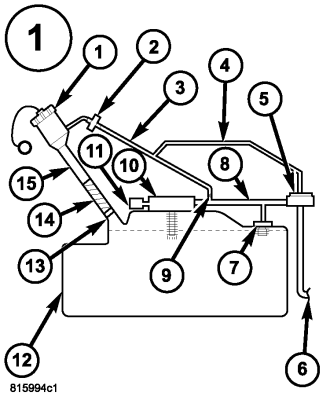

  • ZONE 1

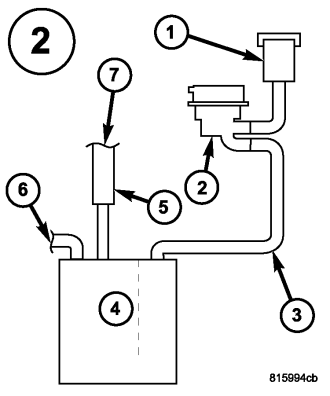

  • ZONE 2

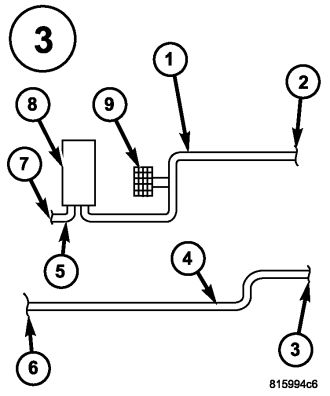

  • ZONE 3










NOTE: Carefully inspect the vent side of the EVAP Canister. Due to the filtering system in the canister the smoke may not be as thick. Introducing smoke into the filtered side of the canister may assist in locating the leak.



Select the appropriate response from the list below:

A leak was found at the gas cap or fuel filler tube
  • Go To 6


A leak was found in one or more of the EVAP System zones
  • If the leak is at a hose connection, remove the hose then reconnect the hose and check for a leak again. All other leaks repair as necessary.
  • Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)


No leaks were detected
  • Go To 7

6.LEAK AT GAS CAP



NOTE: The gas cap adapter is being used as a known good cap.



Was a leak found at the gas cap adapter?

Yes


No

7.EVAP PURGE SOLENOID OPERATION

NOTE: After disconnecting the Evap Purge Solenoid vacuum connections, inspect the lines and solenoid for any signs of contamination from the EVAP Canister.




NOTE: You are disconnecting the vacuum line at the Throttle Body so you are not disturbing the vacuum connection at the Evap Purge Solenoid.




NOTE: Below is an optional method of checking the purge valve for leaks if the EELD is unavailable.





NOTE: Monitor the vacuum gauge for at least 15 seconds.



Is smoke visible from the EVAP Purge Solenoid Vacuum hose if using the EELD, or will it not hold a vacuum?

Yes


No
  • Go To 8

8.EVAP SYSTEM MONITOR SWITCH






Were any problems found?

Yes


No
