REMOVAL

WARNING: Do not remove the cylinder block drain plugs or loosen the radiator draincock with the system hot and under pressure. Serious burns from coolant can occur. Refer to cooling system draining.

Do not waste reusable coolant. If the solution is clean, drain the coolant into a clean container for reuse.

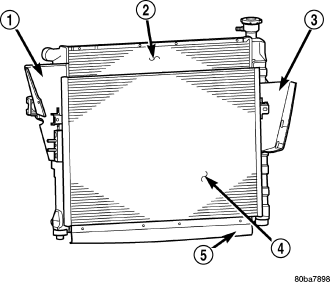

CAUTION: When removing the radiator or A/C condenser for any reason, note the location of all radiator-to-body and radiator-to-A/C condenser rubber air seals . These are used at the top, bottom and sides of the radiator and A/C condenser. To prevent overheating, these seals must be installed to their original positions.

WARNING: The air conditioning system (if equipped) is under a constant pressure even with the engine off. Refer to refrigerant warnings in, heating and air conditioning before handling any air conditioning component.

NOTE: The radiator and radiator cooling fan can be removed as an assembly. It is not necessary to remove the cooling fan before removing or installing the radiator.
