C2205–STEERING ANGLE SENSOR INTERNAL

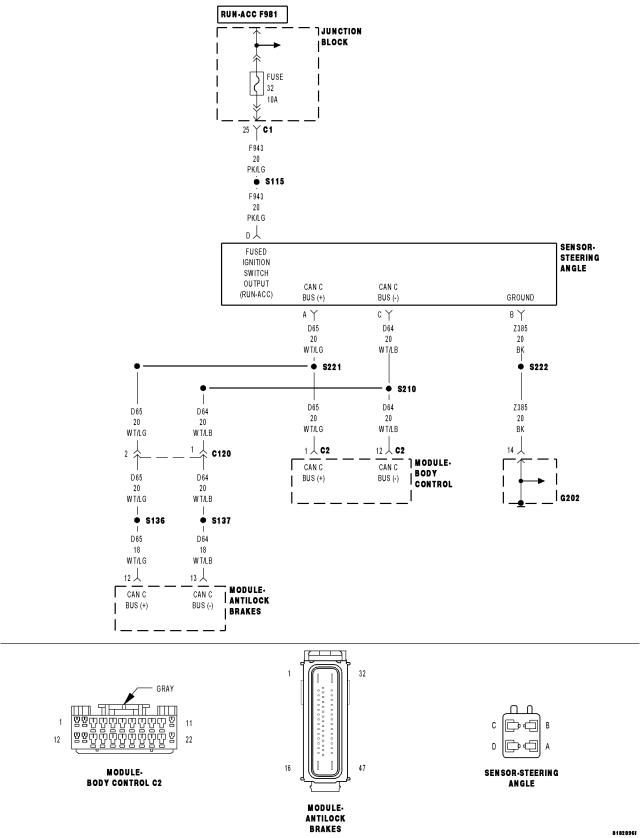

For a complete wiring diagram Refer to Section 8W.

• When Monitored:

  With ignition on, but not if supply voltage faults are detected.

• Set Condition:

  If the Anti-Lock Brakes Module detects that the Steering Angle Sensor is either not calibrated, or not initialized, or its status changes from initialized to not initialized, or if the sensor sends an internal failure message.

Diagnostic Test

NOTE: This DTC must be active for the results of this test to be valid.

WARNING: Ensure brake capability is available before road testing.

• Replace the Anti-Lock Brakes Module in accordance with the Service Information.
• Go To2

• Perform the ABS Intermittent Condition diagnostic procedure in this Section.
• Refer to the ABS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES - DIAGNOSIS AND TESTING)

CAUTION: Ensure brake capability is available before road testing.

NOTE: Test drive the vehicle by turning the wheel left or right in a curving manner at a velocity between 10 and 25 km/h (6 and 15 mph). for set conditions to be met.

• Replace the Anti-Lock Brakes Module in accordance with the Service Information.
• Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

• Test Complete.
