STANDARD PROCEDURE - HEIGHT MEASUREMENT


RIDE HEIGHT

NOTE: The suspension is non-adjustable.

The vehicle suspension height should be measured before performing wheel alignment procedure. Also when front suspension components have been replaced. This measure must be performed with the vehicle supporting it's own weight and taken on both sides of the vehicle.

Front and rear ride heights are not adjustable. The spring selections at assembly determine ride height for acceptable appearance of the vehicle. Ride height dimensions assume full fluids (including fuel) and zero passengers. Refer to the table below for front ride height dimensions.

Vehicle ride height audits should be performed utilizing the following procedure:

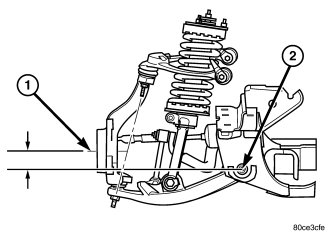

FRONT RIDE HEIGHT



REAR RIDE HEIGHT


Measurement
  		Target
  		Minimum
  		Maximum

Front Ride Height Distance AB
  		66.5 mm
Z=996.8 - 930.3 mm
  		56.5 mm
  		76.5 mm

Front Cross Ride Height Left - Right
  		0.0 mm
  		-10.0 mm
  		10.0 mm

Rear Ride Height Distance CD
  		92.1 mm
  		82.1 mm
  		102.1 mm

Rear Cross Ride Height Left - Right
  		0.0 mm
  		-10.0 mm
  		10.0 mm
