C2114–DYNAMICS SENSOR SUPPLY VOLTAGE LOW
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
If the Dynamics Sensor status changes from initialized to not initialized due to low voltage on the (G4) Dynamics Sensor Supply circuit.
| Possible Causes |
| WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE |
| (G4) DYNAMICS SENSOR SUPPLY CIRCUIT HIGH RESISTANCE |
| (G94) DYNAMICS SENSOR GROUND CIRCUIT HIGH RESISTANCE |
| DYNAMICS SENSOR |
| ANTI-LOCK BRAKES MODULE |
1.VERIFY DTC IS ACTIVE
Does this DTC reset?
Yes
- Go To 2
No
- Perform the ABS Intermittent Condition diagnostic procedure in this Section.
- Refer to the ABS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES - DIAGNOSIS AND TESTING)
2.INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS
Were any problems found?
Yes
- Repair as necessary.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 3

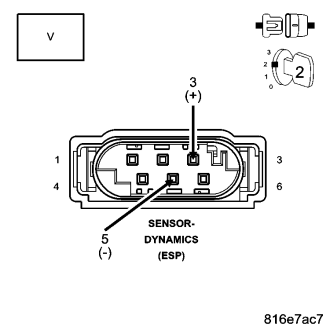

3.CHECK (G4) DYNAMICS SENSOR SUPPLY CIRCUIT & (G94) DYNAMICS SENSOR GROUND CIRCUIT FUNCTION
Is the voltage above 4.5 volts?
Yes
- Replace the Dynamics Sensor in accordance with the Service Information.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Go To 4

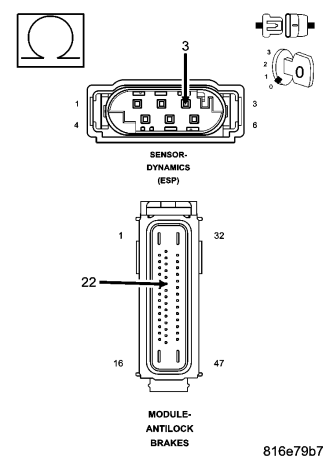

4.CHECK (G4) DYNAMICS SENSOR SUPPLY CIRCUIT FOR HIGH RESISTANCE
Is the resistance below 5.0 ohms?
Yes
- Go To 5
No
- Repair the (G4) Dynamics Sensor Supply circuit for high resistance.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

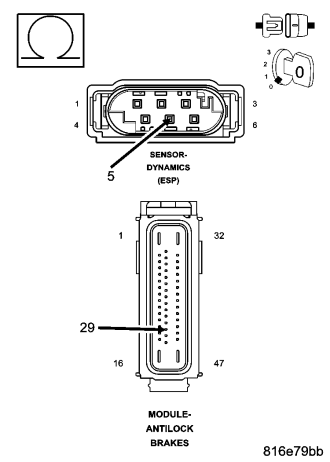

5.CHECK (G94) DYNAMICS SENSOR GROUND CIRCUIT FOR HIGH RESISTANCE
Is the resistance below 5.0 ohms?
Yes
- Replace the Anti-Lock Brakes Module in accordance with the Service Information.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Repair the (G94) Dynamics Sensor Ground circuit for high resistance.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
