ASSEMBLY

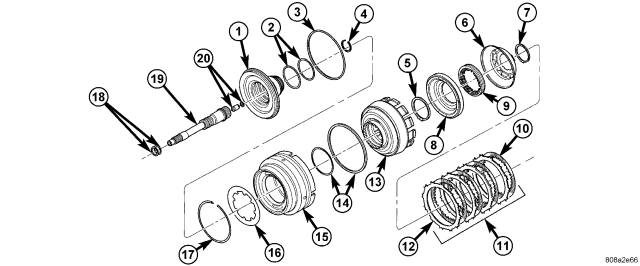

NOTE: Install all new seals and o-rings onto the input shaft and input hub. The o-rings on the input hub are color coded. Be sure to install the correct o-ring in the correct location.

NOTE: The UD clutch discs can be identified by their tan color and cross-hatched groove pattern (two sets of parallel grooves at 90 degrees to each other). The UD separator plates can be identified by semi-circular cutouts on the edges of the teeth. The reverse clutch and UD clutch use common separator plates.
