P1140-EGR AIR FLOW CONTROL VALVE OPEN CKT

For a complete wiring diagram Refer to Section 8W

• When Monitored:

  With the ignition on and the ECM EGR Air Flow Control Valve command off.

• Set Condition:

  The ECM does not detect voltage on the EGR Air Flow Control Valve Control circuit.

Diagnostic Test

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

• Go To2

• Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

• Go To3

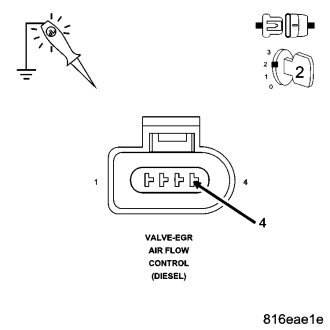

• Repair the ASD Relay Output circuit for an open.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Go To4

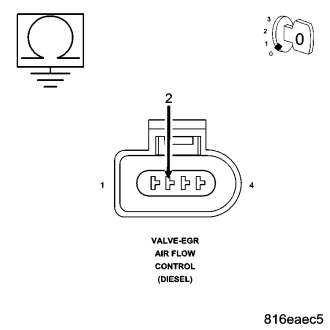

• Repair the EGR Air Flow Control Valve circuit for a short to ground.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Go To5

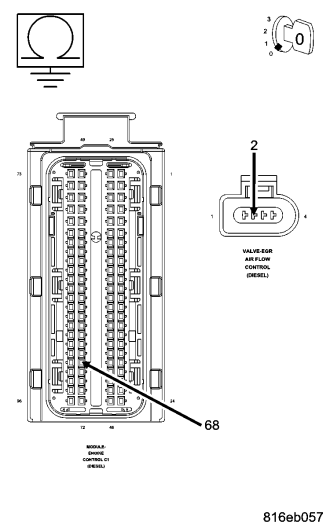

• Repair the EGR Air Flow Control Valve Control circuit for an open.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

NOTE: Ensure the ECM and EGR Air Flow Control Valve harness connectors are connected.

• Replace and program the Engine Control Module in accordance with the Service Information.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

• Replace the EGR Air Flow Control Valve.
• Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
