P0460-FUEL LEVEL SENSOR CIRCUIT SIGNAL VOLTAGE TOO LOW

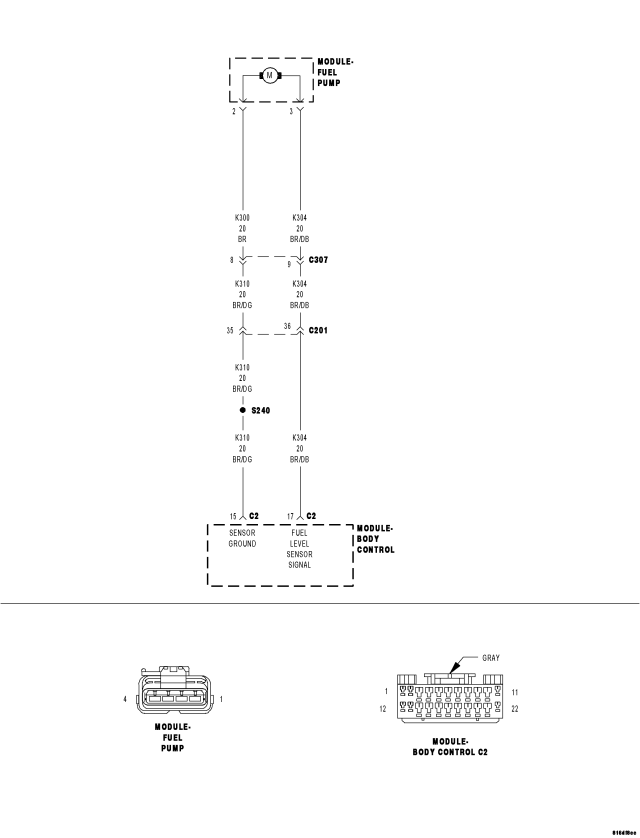

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on.
Set Condition:
The Fuel Level Sensor signal voltage is below 0.19 volt for 1.0 second.

Possible Causes

INTERMITTENT CONDITION

FUEL PUMP MODULE

(K304) FUEL LEVEL SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

FUEL LEVEL SENSOR SIGNAL AND GROUND CIRCUIT SHORTED TOGETHER

BODY CONTROL MODULE

Diagnostic Test

1.CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

Did this DTC set again?

Yes

Go To 2

Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

2.FUEL LEVEL SENSOR

Is the voltage above 4.8 volts?

Yes

Replace the Fuel Level Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Go To 3

3.(K304) FUEL LEVEL SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Is the resistance above 1000 ohms?

Yes

Go To 4

Repair the (K304) Fuel Level Sensor Signal circuit for a short to ground.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

4.(K304) FUEL LEVEL SENSOR SIGNAL AND (K300) GROUND CIRCUIT SHORTED TOGETHER

Is the resistance above 1000 ohms?

Yes

Replace and program the Body Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Repair the (K304) Fuel Level Sensor Signal and (K300) Ground circuit for a short together.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
