P0105-TURBOCHARGER INLET PRESSURE SENSOR PLAUSIBILITY

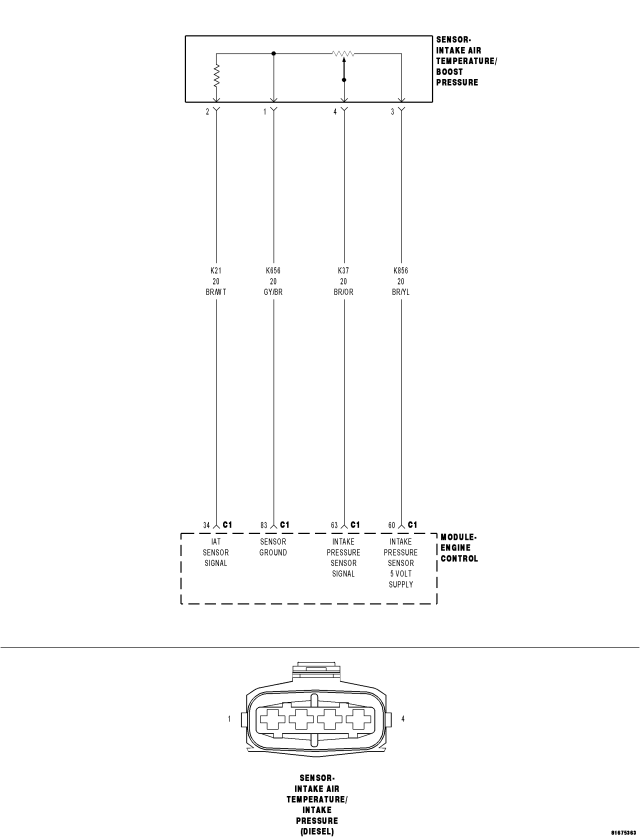

For a complete wiring diagram Refer to Section 8W


  • When Monitored:

    With the engine speed below 850 rpm. No other Boost Pressure Sensor DTC's present and no Atmospheric Pressure Sensor or Inlet Pressure Sensor DTC's present.

  • Set Condition:

    The Boost Pressure Sensor signal differs from the Atmospheric Pressure Sensor signal by 150 hpa or greater for at least 2.0 seconds.


Possible Causes

HIGH RESISTANCE IN THE BOOST PRESSURE SENSOR SIGNAL CIRCUIT

HIGH RESISTANCE IN THE BOOST PRESSURE SENSOR GROUND CIRCUIT

HIGH RESISTANCE IN THE BOOST PRESSURE SENSOR 5-VOLT SUPPLY CIRCUIT

BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR

ENGINE CONTROL MODULE





Diagnostic Test

1.CHECK FOR ACTIVE DTC

NOTE: If DTC P0641 or P0651 is present with this DTC, diagnose DTCs P0641 and P0651 before diagnosing this DTC.


NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.


NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.





NOTE: Engine idle speed must be below 850 RPM.




Did this DTC set again?

Yes
  • Go To2


No

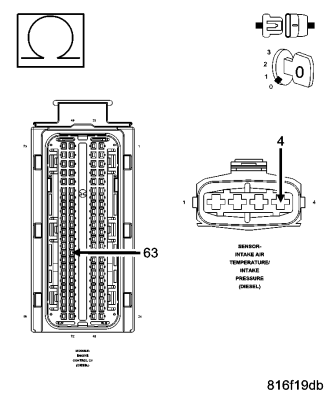

2.HIGH RESISTANCE IN THE BOOST PRESSURE SENSOR SIGNAL CIRCUIT








Is the resistance below 10.0 ohms?

Yes
  • Go To3


No

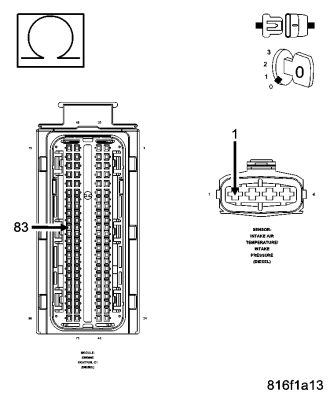

3.HIGH RESISTANCE IN THE BOOST PRESSURE SENSOR GROUND CIRCUIT





Is the resistance below 10.0 ohms?

Yes
  • Go To4


No

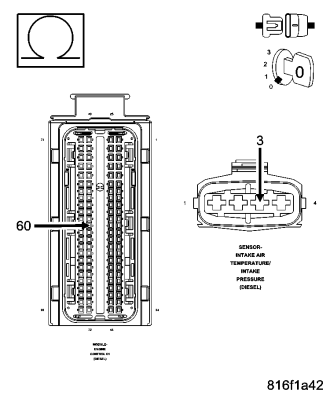

4.HIGH RESISTANCE IN THE BOOST PRESSURE SENSOR 5-VOLT SUPPLY CIRCUIT





Is the resistance below 10.0 ohms?

Yes
  • Go To5


No

5.BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR







Did this DTC set again?

Yes


No
