P0070-AMBIENT AIR TEMPERATURE SIGNAL VOLTAGE TOO HIGH

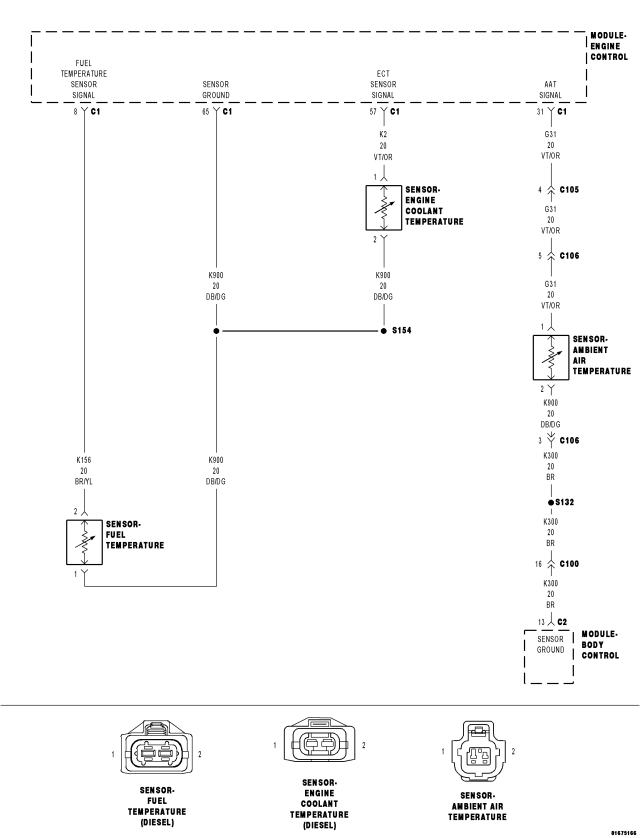

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on.
Set Condition:
The Ambient Air Temperature Sensor signal is above 4.82 volts for 0.5 second.

Possible Causes

AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

AMBIENT AIR TEMP SENSOR GROUND CIRCUIT OPEN

AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT OPEN

AMBIENT TEMPERATURE SENSOR

ENGINE CONTROL MODULE

Diagnostic Test

1.CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

Did this DTC set again?

Yes

Go To2

Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

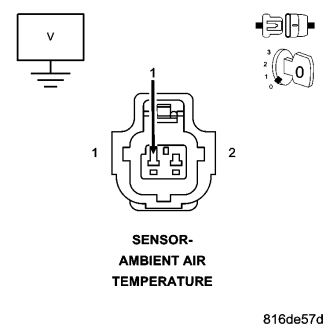

2.AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

NOTE: Remove the jumper wire.

Is the voltage below 1.0 volt?

Yes

Go To3

Repair the Ambient Air Temperature Sensor Signal circuit for a short to voltage.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

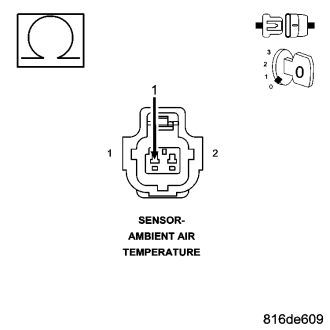

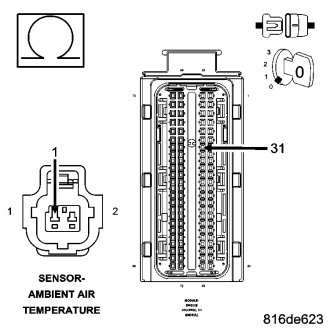

3.AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT OPEN

Is the resistance below 10.0 ohms?

Yes

Go To4

Repair the Ambient Air Temperature Sensor Signal circuit for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

4.AMBIENT TEMPERATURE SENSOR

Does the scan tool display P0070 AMB TEMP. SENSOR CIRCUIT SIGNAL VOLTAGE TOO LOW?

Yes

Replace the Ambient Temperature Sensor.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Go To5

5.AMBIENT TEMP SENSOR GROUND CIRCUIT OPEN

Is the resistance below 10.0 ohms?

Yes

Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Repair the Ambient Air Temperature Sensor Ground circuit for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
