P0045-BOOST PRESSURE SOLENOID EXCESSIVE CURRENT

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on and the ECM Boost Pressure Solenoid command on.
Set Condition:
The ECM detects excessive current on the Boost Pressure Solenoid Control circuit.

Possible Causes

BOOST PRESSURE SOLENOID

BP SOLENOID CONTROL SHORTED TO VOLTAGE

ENGINE CONTROL MODULE - INTERNAL SHORT TO VOLTAGE

Diagnostic Test

1.CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

Did this DTC set again?

Yes

Go To2

Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

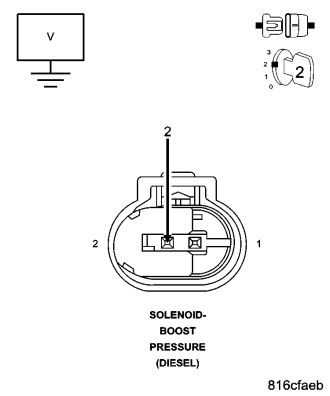

2.BP SOLENOID CONTROL SHORTED TO VOLTAGE

Is the voltage below 1.0 volt?

Yes

Go To3

Repair the BP Solenoid Control circuit for a short to voltage.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

3.BOOST PRESSURE SOLENOID

Does the scan tool display P0045 BOOST PRESSURE SOLENOID OPEN CIRCUIT?

Yes

Replace the Boost Pressure Solenoid.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
