*ALL PASSENGER DOORS FAIL TO UNLOCK
For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (P35) DOOR UNLOCK RELAY OUTPUT CIRCUIT SHORT TO GROUND |
| DOOR UNLOCK RELAY |
Diagnostic Test
1.DTC'S PRESENTAre there any Power Door Lock related codes present?
Yes
- Refer to symptom list for problems related to POWER DOOR LOCKS/RKE.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To2

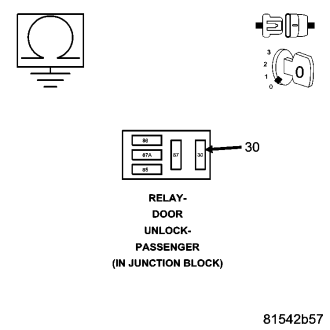

2.CHECK (P35) DOOR UNLOCK RELAY OUTPUT FOR SHORT TO GROUND
Is the resistance below 1000.0 ohms?
No
- Replace the Door Unlock Relay.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Repair the (P35) Door Unlock Relay Output circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
