DRIVER DOOR UNLOCK RELAY CONTROL CIRCUIT OPEN OR SHORT TO GROUND

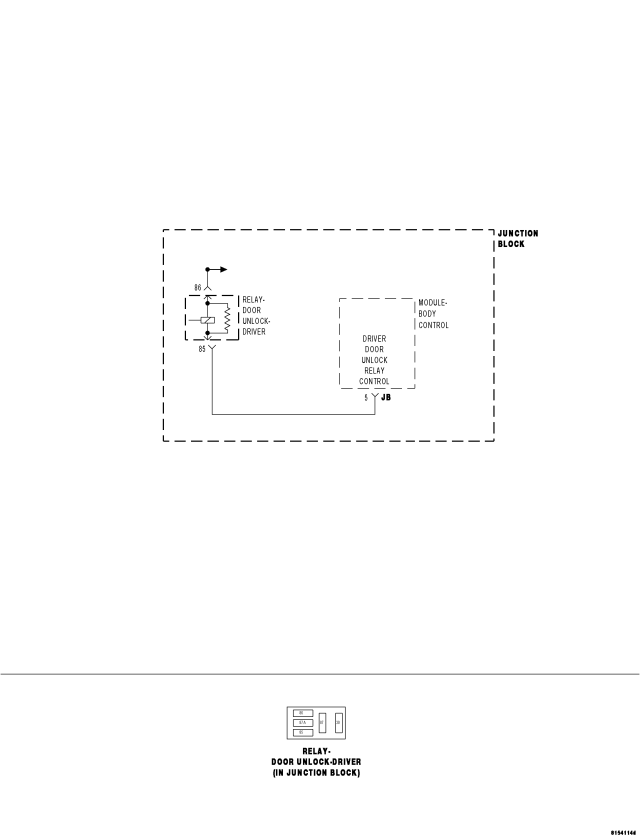

For a complete wiring diagram Refer to Section 8W.

• When Monitored:

  With ignition on.

• Set Condition:

  The BCM detects a low circuit on the Driver Door Unlock Relay Control circuit even though it is not attempting to unlock the doors for more than 5 seconds. If the BCM is not grounding its side of the relay coil, the output should be high.

Diagnostic Test

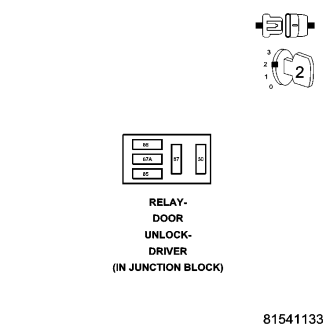

NOTE: If the door locks are totally inoperative, check fuse No. 6 before proceeding.

• Go To2

• Problem is intermittent and not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors and repair as necessary. Ensure the relay is completely plugged in.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

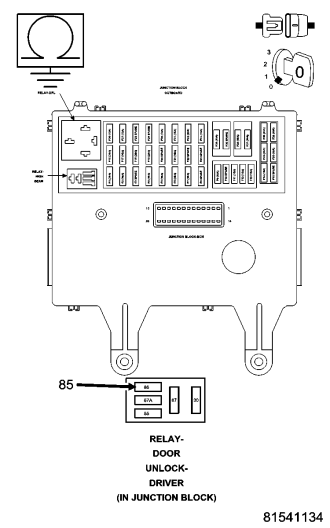

• Go To3

• Replace the original relay.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

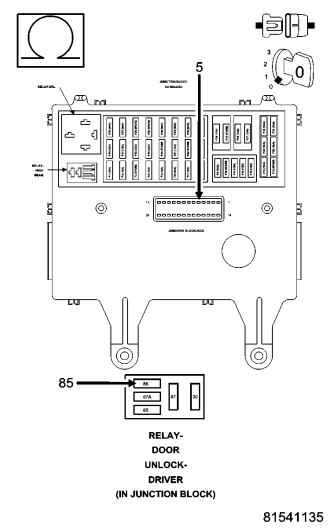

NOTE: Ensure the Junction Block connectors are reconnected at this time.

• Replace the Junction Block in accordance with service information.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To4

• Replace the Body Control Module in accordance with service information.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Replace the Junction Block.
• Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
