AMBIENT TEMPERATURE HIGH (BCM)

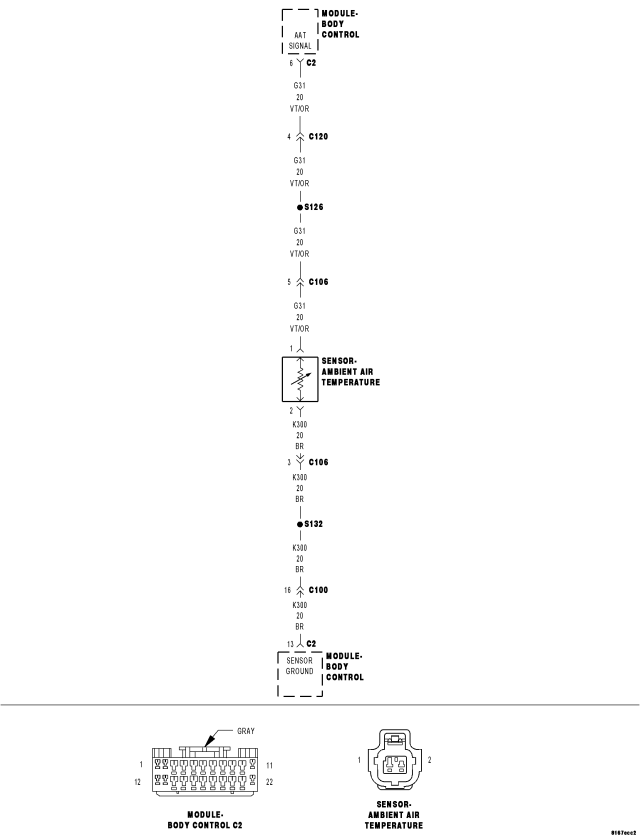

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
The Body Control Module (BCM) will set this DTC if voltage goes above 4.7 volts for more than 5 seconds on the (G31) Ambient Temperature Sensor Signal circuit.
| Possible Causes |
| (G31) AMBIENT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE |
| (G31) AMBIENT TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN |
| (K300) SENSOR GROUND CIRCUIT OPEN |
| AMBIENT TEMPERATURE SENSOR |
| BCM |
Diagnostic Test
1.CHECK THE AMBIENT TEMPERATURE SENSOR VOLTAGEIs the voltage above 4.5 volts?
Yes
- Go To 2
No
- Go To 7

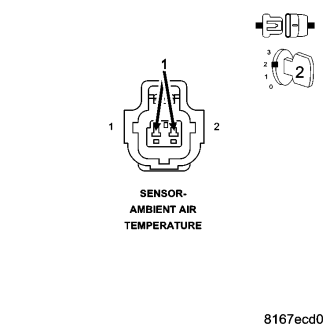

2.CHECK THE (G31) AMBIENT TEMPERATURE SENSOR SIGNAL CIRCUIT VOLTAGE
Is the voltage above 5.2 volts?
Yes
- Go To 3
No
- Go To 4

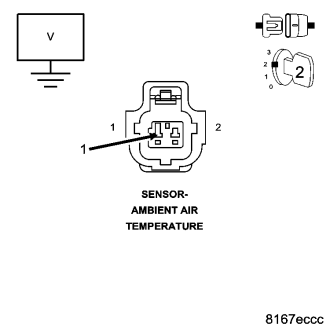

3.CHECK THE (G31) AMBIENT TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE
Is the voltage above 0.2 volts?
Yes
- Repair the (G31) Ambient Temperature Sensor Signal circuit for a short to voltage.
No
- Replace and program the BCM in accordance with the Service Information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
4.CHECK THE (G31) AMBIENT TEMPERATURE SENSOR SIGNAL CIRCUIT & THE (K300) SENSOR GROUND CIRCUIT FUNCTION
Is the voltage below 1.0 volt?
Yes
- Replace the Ambient Temperature Sensor in accordance with the Service Information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- Go To 5

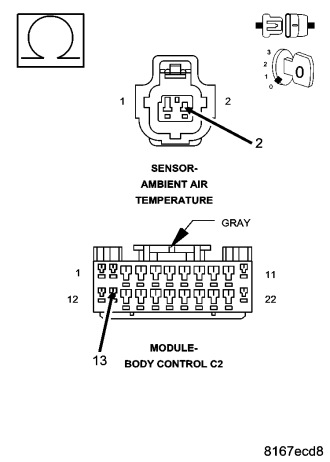

5.CHECK THE (G31) AMBIENT TEMPERATURE SENSOR SIGNAL CIRCUIT FOR AN OPEN
Is the resistance below 5.0 ohms?
Yes
- Go To 6
No
- Repair the (G31) Ambient Temperature Sensor Signal circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

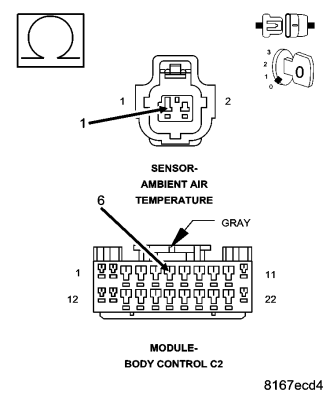

6.CHECK THE (K300) SENSOR GROUND CIRCUIT FOR AN OPEN
Is the resistance below 5.0 ohms?
Yes
- Replace and program the BCM in accordance with the Service Information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- Repair the (K300) Sensor Ground circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
7.TEST FOR INTERMITTENT CONDITION
NOTE: The condition that set this DTC is not present at this time. The following may help in identifying the cause of the intermittent condition.
Were any problems found?
Yes
- Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- Test Complete.
