DESCRIPTION

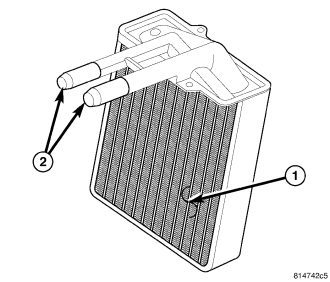

The heater core is mounted in the HVAC housing, located behind the instrument panel. The heater core is a heat exchanger made of rows of tubes and fins (1). The heater core inlet and outlet tubes (2) are integral to the heater core and cannot be serviced separately.

The heater core is serviced by removing the HVAC housing from the vehicle.
