SUNROOF GLASS PANEL ADJUSTMENT

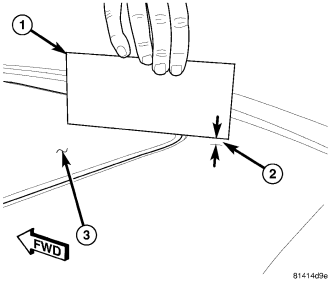

NOTE: When properly adjusted, the front of the glass panel(3) is 1.75 mm (0.07 in.) to 2.75 mm (0.11 in.) lower than the roof surface (2).

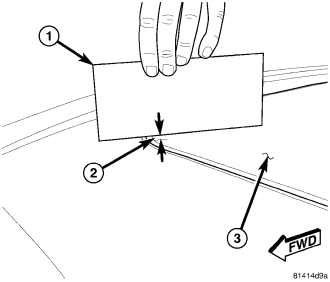

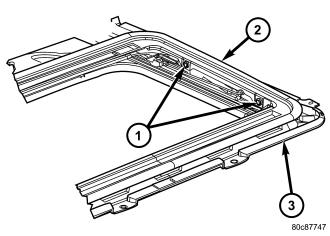

NOTE: When properly adjusted, the rear edge of the glass panel (3) is 1.75mm (0.07 in.) to .75 mm (0.03 in.) lower than the roof surface (2).

NOTE: Glass assembly seal is 2.5mm (0.1 in) higher than the glass panel. Measure at 300mm (11.8 in) outboard of the centerline of the vehicle.
