B1630-RIGHT LOW BEAM CONTROL CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    Continuously.

  • Set Condition:

    When the Totally Integrated Power Module (TIPM) detects a HIGH condition.


Possible Causes

CHECK (Z904) GROUND CIRCUIT

(Z904) GROUND CIRCUIT OPEN

CHECK (L44) RIGHT LOW BEAM CONTROL CIRCUIT

(L44) RIGHT LOW BEAM CONTROL CIRCUIT OPEN

(L44) RIGHT LOW BEAM CONTROL CIRCUIT SHORTED TO VOLTAGE

RIGHT LOW BEAM BULB

TOTALLY INTEGRATED POWER MODULE




Diagnostic Test

1.INTERMITTENT CONDITION






Does the scan tool display active: B1630-RIGHT LOW BEAM CONTROL CIRCUIT HIGH?

Yes
  • Go To 2


No
  • The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
  • Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

2.CHECK (Z904) GROUND CIRCUITS





Does the test light illuminate brightly on each ground circuit?

Yes
  • Go To 4


No
  • Go To 3

3.(Z904) GROUND CIRCUIT OPEN



Is the resistance below 10.0 ohms?

Yes


No

4.CHECK (L44) RIGHT LOW BEAM CONTROL CIRCUIT




Does the test light illuminate brightly with the headlamps switch turned on, and shut off with the headlamps turned off?

Yes


No
  • Go To 5

5.(L44) RIGHT LOW BEAM CONTROL CIRCUIT OPEN

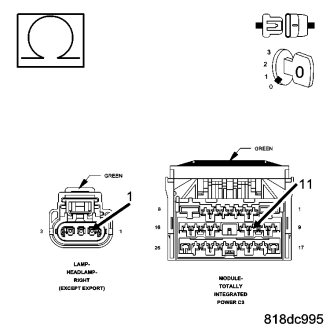

Is the resistance below 10.0 ohms?

Yes
  • Go To 6


No

6.(L44) RIGHT LOW BEAM CONTROL CIRCUIT SHORTED TO VOLTAGE

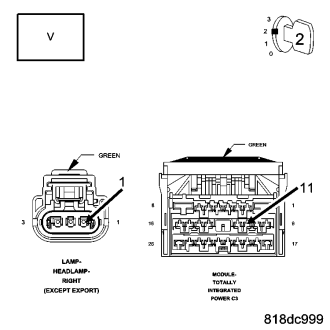

Is there any voltage present?

Yes


No
