INSTALLATION - 3.8L

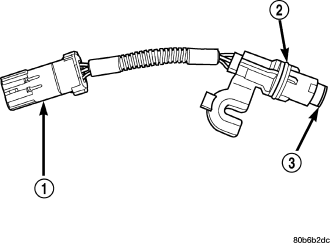

If the removed sensor is reinstalled, clean off old spacer (3) on sensor face. A NEW SPACER (3) must be attached to face before installation. Inspect O-ring (2) for damage, replace if necessary. If sensor is being replaced, confirm that paper spacer (3) is attached to face, and O-ring (2) is positioned in groove of new sensor.
