*NO RESPONSE FROM OCM (OCCUPANT CLASSIFICATION MODULE)

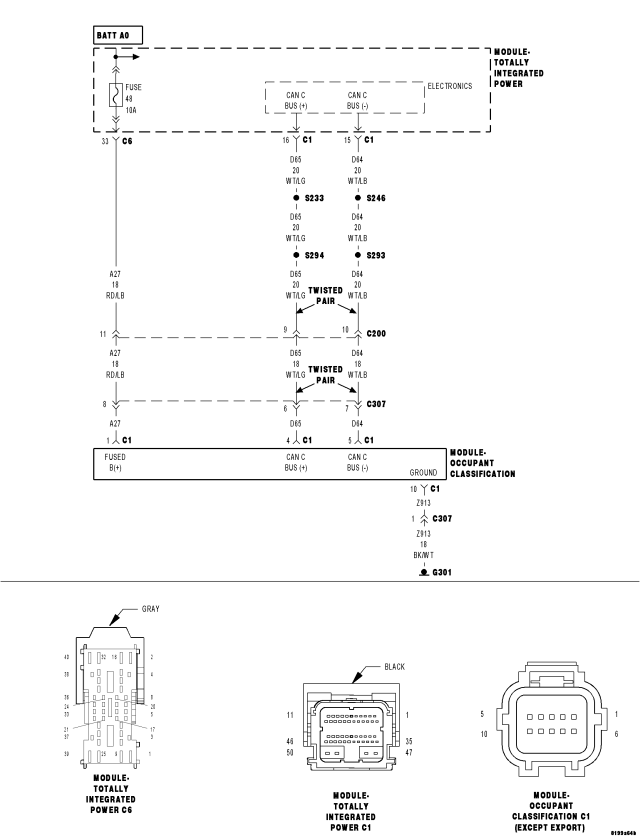

For a complete wiring diagram Refer to Section 8W.



Possible Causes

(Z913) GROUND CIRCUIT OPEN

(A27) FUSED B+ CIRCUIT OPEN OR SHORTED

(D65) CAN C BUS (+) CIRCUIT OPEN

(D64) CAN C BUS (-) CIRCUIT OPEN

OCCUPANT CLASSIFICATION MODULE




Diagnostic Test

1.TEST FOR INTERMITTENT CONDITION


NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.



NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.



Does the scan tool display a red X next to the module?

Yes
  • Go To 2


No
  • The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

2.(Z913) GROUND CIRCUIT OPEN






Does the test light illuminate brightly?

Yes
  • Go To 3


No
  • Repair the (Z913) ground circuit for an open.
  • Perform the AIRBAG VERIFICATION TEST - VER 1.

3.(A27) FUSED B+ CIRCUIT OPEN OR SHORTED





Does the test light illuminate brightly?

Yes
  • Go To 4


No
  • Repair the (A27) Fused B+ circuit for an open or short.
  • Perform the AIRBAG VERIFICATION TEST - VER 1.

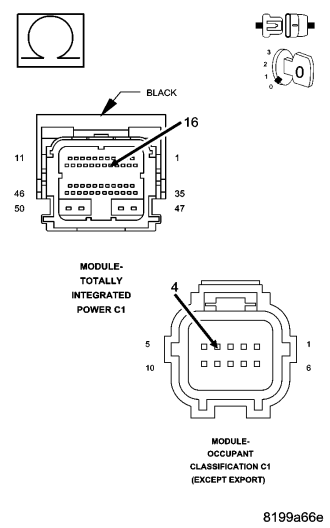

4.(D65) CAN C BUS (+) CIRCUIT OPEN







Is resistance below 5.0 ohms?

Yes
  • Go To 5


No
  • Repair the (D65) CAN C Bus (+) circuit for an open.
  • Perform the AIRBAG VERIFICATION TEST - VER 1.

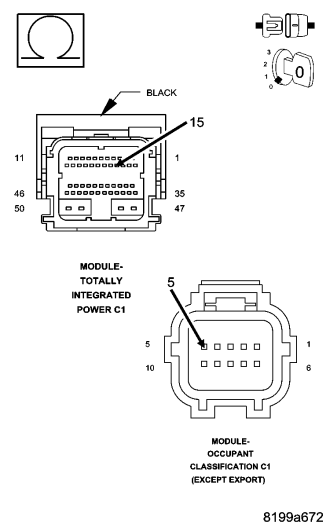

5.(D64) CAN C BUS (-) CIRCUIT OPEN





Is resistance below 5.0 ohms?

Yes
  • Replace the Occupant Classification Module in accordance with the service information.
  • Perform the AIRBAG VERIFICATION TEST - VER 1.


No
  • Repair the (D64) CAN C Bus (-) circuit for an open.
  • Perform the AIRBAG VERIFICATION TEST - VER 1.
