B1407-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

• When Monitored:
• With the radio on.
• Set Condition:
• When the output circuit is open for more than three seconds. The radio will not set the fault if the radio confirms an amplifier is on the BUS.

Diagnostic Test

• Go To 2

• The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
• Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 3

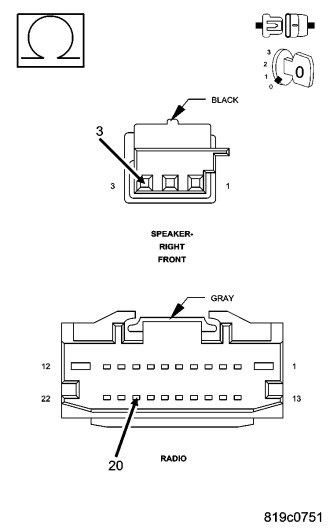

• Repair the (X202) Right Front Speakers (+) circuit for an open condition.
• Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 4

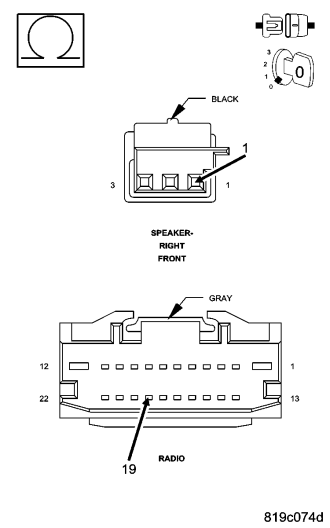

• Repair the (X292) Right Front Speakers (-) circuit for an open condition.
• Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Replace the Front Right Audio Speaker in accordance with the service information.
• Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Test Complete.
