REMOVAL

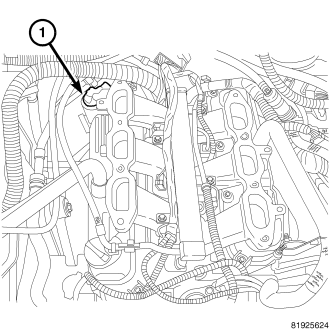

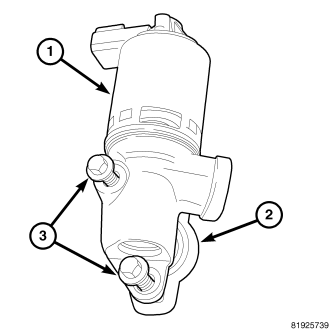

The EGR valve and solenoid assembly (1) is attached to the rear of the right cylinder head.

A metal gasket (2) is used between the EGR valve/solenoid assembly, and the right cylinder head.

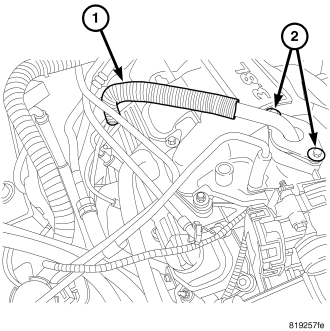

A metal tube (1) connects the EGR valve/solenoid assembly to the intake manifold.
