HOUSING-AIR INLET

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.

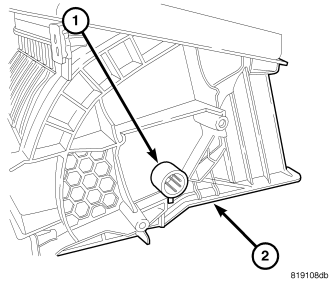

NOTE: Install the recirculation door pivot shaft adapter by carefully pushing it straight into the end of the recirculation door pivot shaft.
