HOUSING-AIR DISTRIBUTION

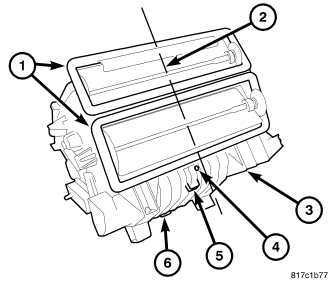

NOTE: The air distribution housing must be removed from the HVAC housing and disassembled for service of the blend-air and mode-air doors.

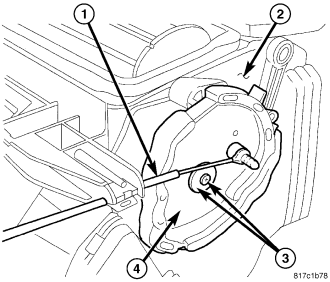

NOTE: Whenever the control cables are removed from the HVAC housing, new cables must be installed. Failure to replace the control cables when required can result in selected temperatures and operating modes not properly obtained.

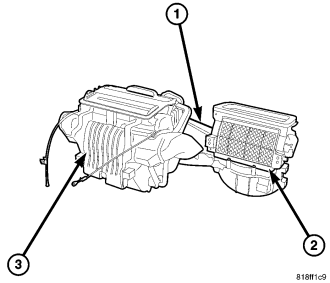

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.

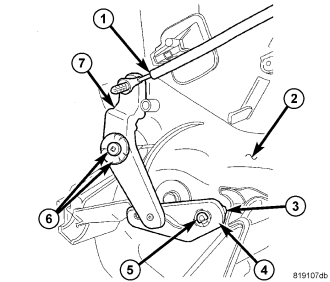

NOTE: To remove the blend door pivot lever, disengage the retaining tab and pull the lever straight off of the blend door pivot shaft.

NOTE: If any foam seal on the air distribution housing outlets is deformed or damaged, the seal must be replaced.

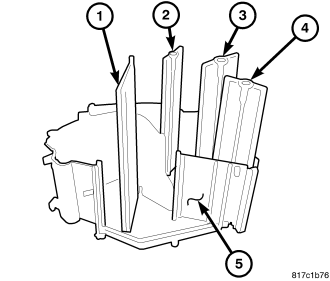

NOTE: If a seal on an air door is deformed or damaged, the air door must be replaced.

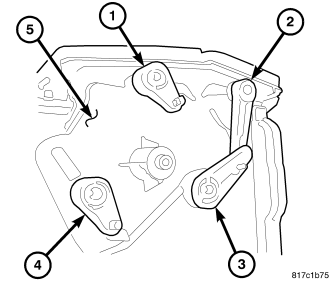

NOTE: To remove the mode door levers, disengage the lever retaining tabs located on the inside of the air distribution housing and pull the levers straight out of the housing.
