STANDARD PROCEDURE - MEASURING BEARING CLEARANCE USING PLASTIGAGE

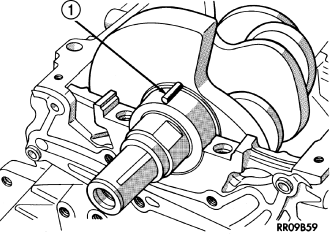

Engine crankshaft bearing clearances can be determined by use of Plastigage or equivalent. The following is the recommended procedure for the use of Plastigage:

(Refer to 9 - ENGINE - SPECIFICATIONS) Plastigage generally is accompanied by two scales. One scale is in inches, the other is a metric scale.

NOTE: Plastigage is available in a variety of clearance ranges. Use the most appropriate range for the specifications you are checking.
