*NO CRANK CONDITION

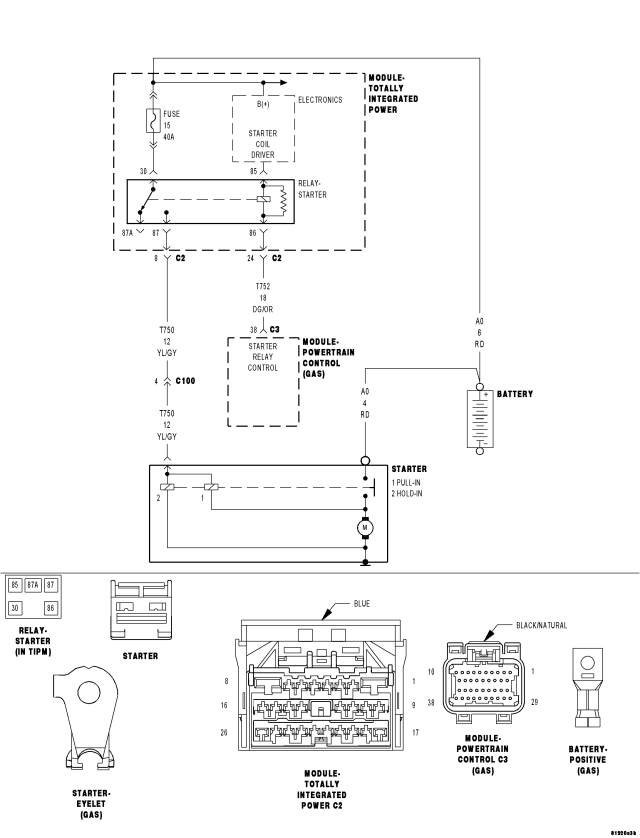

For a complete wiring diagram Refer to Section 8W.

Possible Causes

MECHANICAL CONDITION

FUSED B+ CIRCUITS OPEN

BATTERY CIRCUIT RESISTANCE TOO HIGH

(T752) STARTER RELAY CONTROL CIRCUIT SHORTED TO GROUND

(T752) STARTER RELAY CONTROL CIRCUIT OPEN

(T750) STARTER RELAY OUTPUT CIRCUIT SHORTED TO GROUND

(T750) STARTER RELAY OUTPUT CIRCUIT OPEN

TRANSMISSION RANGE SENSOR

TIPM

PCM

STARTER

Diagnostic Test

1.MECHANICAL CONDITION

NOTE: Verify the battery is fully charged and capable of passing a load test before continuing.

WARNING: Make sure the battery is disconnected, then wait two minutes before proceeding. Failure to do so may result in personal injury or possible death.

Is the engine able to turn over?

Yes

Go To 2

Repair the mechanical condition preventing the starter motor from cranking.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.PCM FUSED B+ CIRCUITS

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

Does the test light illuminate brightly?

Yes

Go To 3

Repair the open or short to ground in the PCM Fused B+ circuits.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

3.TRANSMISSION RANGE SENSOR

NOTE: The circuit is grounded in Park and Neutral and open in the other positions.

Did the resistance change from above 100 kohms (open) to below 10.0 ohms (grounded) ?

Yes

Go To 4

Replace the Transmission Range Sensor.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

4.EXCESSIVE RESISTANCE IN THE BATTERY CIRCUIT

Did either Battery Cable have a voltage drop greater than 0.2 of a volt?

Yes

Repair the excessive resistance in the Battery circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Go To 5

5.STARTER

CAUTION: The Parking Brake must be on and the Transmission must be in park for a vehicle equipped with an automatic transmission.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

NOTE: The Stater Solenoid harness connector must remain disconnected at this time.

Does the test light illuminate brightly?

Yes

Replace the Starter per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Go To 6

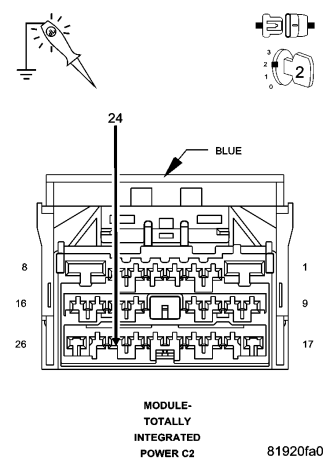

6.(T752) STARTER RELAY CONTROL CIRCUIT CHECK

Does the test light illuminate brightly when the key is turned to the crank condition?

Yes

Go To 7

Repair the excessive resistance or short to ground in the (T752) Starter Relay Control circuit between the PCM and TIPM.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

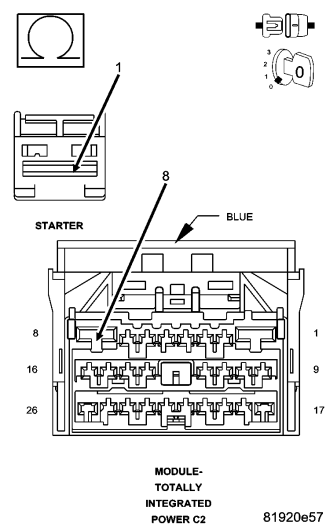

7.(T750) STARTER CONTROL OUTPUT CIRCUIT OPEN

Is the resistance below 5.0 ohms?

Yes

Go To 8

Repair the open in the (T750) Starter Control Output circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

8.(T750) STARTER RELAY OUTPUT CIRCUIT SHORTED TO GROUND

Is the resistance below 100 ohms?

Yes

Repair the short to ground in the (T750) Starter Relay Output circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Go To 9

9.TOTALLY INTEGRATED POWER MODULE

NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Were any problems found?

Yes

Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Replace the Totally Integrated Power Module in accordance with the Service Information.
Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
