P0223-THROTTLE POSITION SENSOR 2 CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.
Set Condition:
Throttle Position Sensor No.2 Signal circuit voltage is greater than 4.9 volts for 25 ms. One Trip Fault. ETC light will illuminate.

Possible Causes

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO BATTERY VOLTAGE

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (F855) 5-VOLT SUPPLY CIRCUIT

(K922) TP RETURN CIRCUIT OPEN

THROTTLE POSITION SENSOR/THROTTLE BODY

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Diagnostic Test

1.ACTIVE DTC

NOTE: When this DTC is Active the engine speed, torque, and vehicle speed are limited to a Limp in mode.

NOTE: If a 5-Volt supply DTC has also set, diagnose the 5-Volt DTC before continuing.

Is the DTC Active at this time?

Yes

Go To 2

Go To 7

2.THROTTLE POSITION SENSOR

Is the voltage below 0.5 volt?

Yes

Disconnect the Battery when replacing the Throttle Body Assembly. Replace the Throttle Body Assembly. After installation is complete, with the scan tool select the ETC RELEARN function.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Go To 3

3.(K122) TP SIGNAL 2 CIRCUIT SHORTED TO BATTERY VOLTAGE

Is the voltage above 0 volts?

Yes

Repair the short to battery voltage in the (K122) TP Signal 2 circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Go To 4

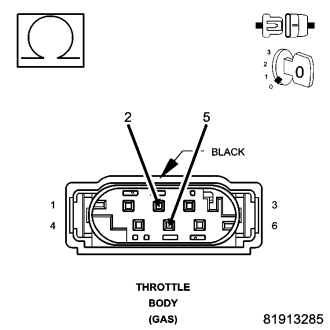

4.(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (F855) 5-VOLT SUPPLY CIRCUIT

Is the resistance below 100 ohms?

Yes

Repair the short between the (K122) TP Signal 2 circuit and the (F855) 5-volt Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Go To 5

5.(K922) TP RETURN CIRCUIT OPEN

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

Is the resistance below 5.0 ohms?

Yes

Go To 6

Repair the open in the (K922) TP Return circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

6.PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Were there any problems found?

Yes

Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

7.THROTTLE FOLLOWER TEST

Is there a smooth voltage change from high to low?

Yes

Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

Disconnect the Battery when replacing the Throttle Body Assembly. Replace the Throttle Body Assembly. After installation is complete, with the scan tool select the ETC RELEARN function.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
